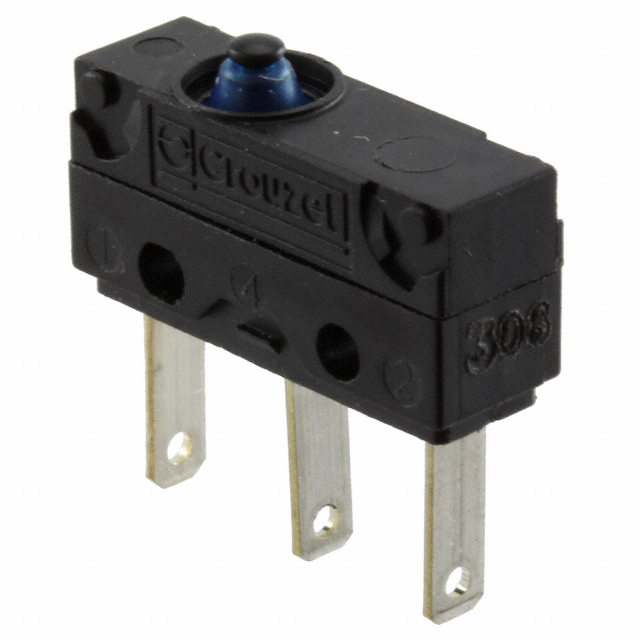

83183002

Active

Crouzet

SWITCH SNAP ACTION SPDT 3A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION SPDT 3A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 3A 250V

Part	Voltage Rating - DC	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Circuit	Switch Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Ingress Protection	Differential Travel	Differential Travel	Release Force	Actuator Type	Operating Position	Operating Position	Operating Force	Overtravel	Overtravel
Crouzet 831830C2.DL	24 V	Solder Lug	250 V	3 A	SPDT	On-Mom	Chassis Mount	125 °C	-40 °C	2000000 Cycles	IP67 - Dust Tight, Waterproof
Crouzet 83183002	24 V	Quick Connect - 0.110" (2.8mm)	250 V	3 A	SPDT	On-Mom	Chassis Mount	125 °C	-40 °C	2000000 Cycles	IP67 - Dust Tight, Waterproof	0.1 mm	0.004 in	82 gf	Round (Pin Plunger)	8.4 mm	0.33 in	255 gf	0.6 mm	0.025 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 5.96

General part information

Switch SPDT Chassis Mount
