SWI3-5-E-I38

Active

CUI Inc.

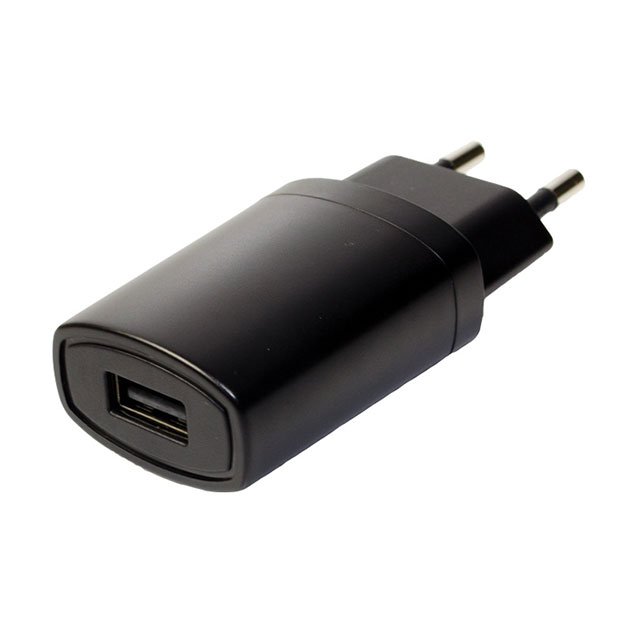

AC/DC WALL MOUNT ADAPTER 5V 3W

SWI3-5-E-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 3W

Description Specifications Series Pricing CAD Documents

Description

General part information

SWI3-5 Series

5V 3 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical Specifications

Parameters and characteristics for this part

Specification	SWI3-5-E-I38

Applications	ITE (Commercial)
Approval Agency	IEC, CB Scheme
Current - Output (Max)	600 mA
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	USB A Receptacle
Power (Watts)	3 W
Region Utilized	Europe
Size / Dimension Height	2.58 in
Size / Dimension Length	0.9 in
Size / Dimension Width	1.43 in
Standard Number	62368-1, 60950-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	5 VDC

SWI3-5 Series

Part	Input Connector	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	No Load Power Consumption (Max)	Input Type	Power (Watts)	Applications	Output Connector	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Operating Temperature (Max)	Efficiency	Region Utilized	Approval Agency	Standard Number	Voltage - Output	Current - Output (Max)	Form	Cord Length	Polarization	Output Connector I.D.	Output Connector Length	Output Connector O.D.
CUI Inc. SWI3-5-E-ST	CEE 7/16	2.95 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Stripped Tinned Wire Leads	90 V	264 V	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 VDC	600 mA	Wall Mount (Class II)	59 in
CUI Inc. SWI3-5-N-ST	NEMA 1-15P	2.17 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Stripped Tinned Wire Leads	90 V	264 V	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 VDC	600 mA	Wall Mount (Class II)	59 in
CUI Inc. SWI3-5-E-I38	CEE 7/16	2.58 in	1.43 in	0.9 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	USB A Receptacle	90 V	264 V	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 VDC	600 mA	Wall Mount (Class II)
CUI Inc. SWI3-5-E-P5R	CEE 7/16	2.2 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug R/A	90 V	264 V	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 VDC	600 mA	Wall Mount (Class II)	59 in	Positive Center	2.1 mm	9.5 mm	5.5 mm
CUI Inc. SWI3-5-N-P6R	NEMA 1-15P	1.49 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug R/A	90 V	264 V	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 VDC	600 mA	Wall Mount (Class II)	59 in	Positive Center	2.5 mm	9.5 mm	5.5 mm
CUI Inc. SWI3-5-N-P5	NEMA 1-15P	1.49 in	2.13 in	1.16 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug	90 V	264 V	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 VDC	600 mA	Wall Mount (Class II)	59 in	Positive Center	2.1 mm	9.5 mm	5.5 mm
CUI Inc. SWI3-5-N-P6	NEMA 1-15P	1.49 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug	90 V	264 V	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 VDC	600 mA	Wall Mount (Class II)	59 in	Positive Center	2.5 mm	9.5 mm	5.5 mm
CUI Inc. SWI3-5-E-P6R	CEE 7/16	2.2 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug R/A	90 V	264 V	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 VDC	600 mA	Wall Mount (Class II)	59 in	Positive Center	2.5 mm	9.5 mm	5.5 mm
CUI Inc. SWI3-5-N-I38	NEMA 1-15P	1.87 in	1.43 in	0.9 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	USB A Receptacle	90 V	264 V	40 °C	Level VI	North America	CSA FCC PSE UL	60950-1 62368-1 C22.2 No. 60950-1	5 VDC	600 mA	Wall Mount (Class II)
CUI Inc. SWI3-5-E-P5	CEE 7/16	2.2 in	1.16 in	2.13 in	75 mW	Fixed Blade	3 W	ITE (Commercial)	Barrel Plug	90 V	264 V	40 °C	CoC Tier 2 Level VI	Europe	CB Scheme IEC	60950-1 62368-1	5 VDC	600 mA	Wall Mount (Class II)	59 in	Positive Center	2.1 mm	9.5 mm	5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
