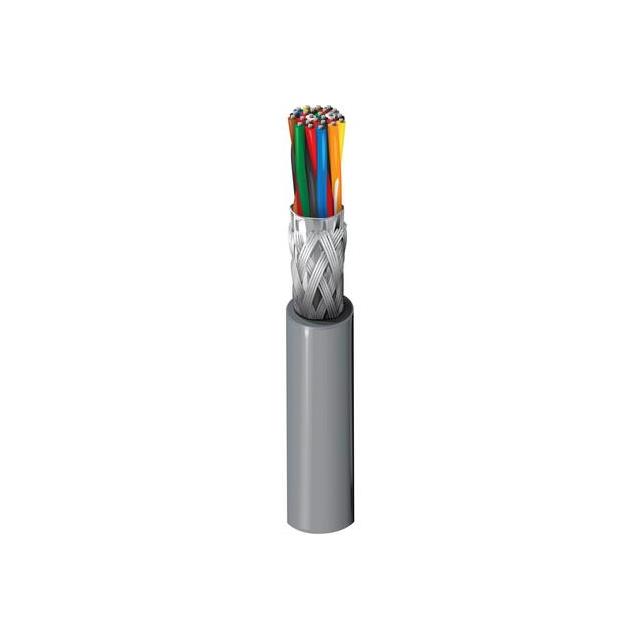

Specification	8318 060500

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Jacket (Insulation) Diameter	0.54 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Chrome
Length	500 ft
Number of Conductors	36
Number of Conductors - Pair	18
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Ratings	UL, 2464, Style
Shield Coverage	65%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

8318 Series

Part	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Length	Number of Conductors - Pair	Conductor Arrangement	Number of Conductors	Cable Type	Wire Gauge	Ratings	Usage	Voltage	Shield Type	Conductor Material	Conductor Insulation	Conductor Strand Gauge	Conductor Strand Count	Jacket (Insulation) Thickness	Jacket Color	Operating Temperature (Min)	Operating Temperature (Max)	Shield Material	Shield Coverage
Belden Inc. 8318 060500	0.54 in	Poly-Vinyl Chloride (PVC)	500 ft	18	Twisted	36	Multi-Pair	22 AWG	2464 Style UL	Computer	300 V	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)	30	7 Strands	0.045 in	Chrome	-30 °C	80 °C	Aluminum Copper Tinned	100% 65%
