6N137-X006

Active

Vishay Semiconductor Opto Division

OPTOISO 5.3KV OPEN DRAIN 8-DIP

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOISO 5.3KV OPEN DRAIN 8-DIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6N137-X006	6N137 Series

Common Mode Transient Immunity (Min) [Min]	1 kV/µs	1 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA	20 mA
Current - Output / Channel	50 mA	50 mA
Data Rate	10 Mbps	10 Mbps
Input Type	DC	DC
Inputs - Side 1/Side 2 [custom]	0	0
Inputs - Side 1/Side 2 [custom]	1	1
Mounting Type	Through Hole	Through Hole
Number of Channels	1	1
Operating Temperature [Max]	100 °C	85 - 100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Open Drain	Open Drain, Open Collector
Package / Case	10.16 mm	10.16 mm
Package / Case	8-DIP	8-DIP
Package / Case	10.16 mm	0.3 - 10.16 mm
Package / Case	-	7.62 mm
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns	75 ns
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns	75 ns
Rise / Fall Time (Typ) [custom]	7 ns	7 - 10 ns
Rise / Fall Time (Typ) [custom]	23 ns	23 - 27 ns
Supplier Device Package	8-DIP	8-DIP
Voltage - Forward (Vf) (Typ)	1.4 V	1.35 - 1.4 V
Voltage - Isolation	5300 Vrms	5300 Vrms
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

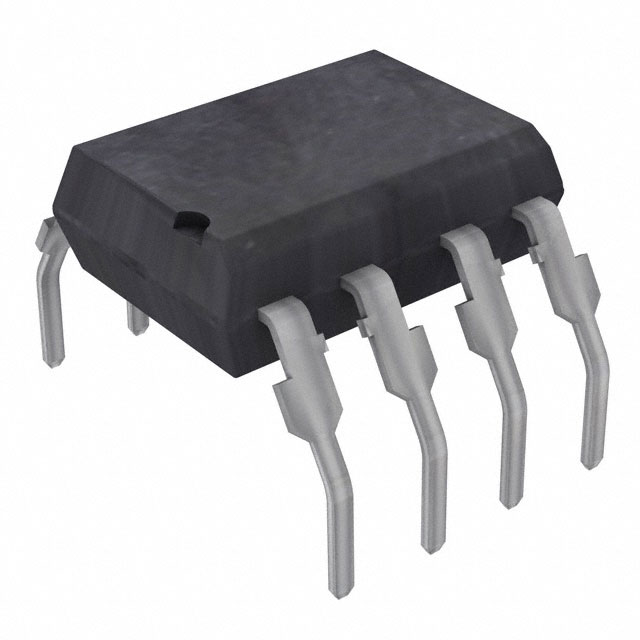

OPTOISO 5.3KV OPEN DRAIN 8-DIP

Part	Current - Output / Channel	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Number of Channels	Current - DC Forward (If) (Max) [Max]	Input Type	Mounting Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Common Mode Transient Immunity (Min) [Min]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case
Vishay Semiconductor Opto Division 6N137-X006	50 mA	0	1	1	20 mA	DC	Through Hole	75 ns	75 ns	1 kV/µs	10.16 mm	8-DIP	10.16 mm	8-DIP	1.4 V	5300 Vrms	100 °C	-40 °C	Open Drain	10 Mbps	4.5 V	5.5 V	7 ns	23 ns
Vishay Semiconductor Opto Division 6N137A	50 mA	0	1	1	20 mA	DC	Through Hole	75 ns	75 ns	1 kV/µs		8-DIP	0.3 in	8-DIP	1.35 V		85 °C	-40 °C	Open Collector	10 Mbps	4.5 V	5.5 V	10 ns	27 ns	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 10MBd Open Drain 5300Vrms 1 Channel 1kV/µs CMTI 8-DIP
