1267SQ-0.5(5)

Active

3M (TC)

RF SHLDING SHEET 0.5"X0.5" 5PK

Search across all available documentation for this part.

Active

3M (TC)

RF SHLDING SHEET 0.5"X0.5" 5PK

Technical Specifications

Parameters and characteristics for this part

Part	Adhesive	Material	Length	Length	Shape	Type	Thickness - Overall [z]	Thickness - Overall [z]	Width	Width [x]	Length [x]	Length [x]	Width [x]	Width
3M (TC) 1267SQ-0.5(5)	Non-Conductive Single Sided	Embossed Aluminum Foil	0.5 in	12.7 mm	Square	Shielding Sheet	0.13 mm	0.005 in
3M (TC) 5-1267-1-4R	Non-Conductive Single Sided	Embossed Aluminum Foil	4 in	101.6 mm	Rectangular	Shielding Sheet	0.13 mm	0.005 in	25.4 mm	1 in
3M (TC) 5-1267-1-2R	Non-Conductive Single Sided	Embossed Aluminum Foil	2 in	50.8 mm	Rectangular	Shielding Sheet	0.13 mm	0.005 in	25.4 mm	1 in
3M (TC) 5-1267-1S	Non-Conductive Single Sided	Embossed Aluminum Foil			Square	Shielding Sheet	0.13 mm	0.005 in	25.4 mm	1 in	1 in	25.4 mm
3M (TC) 5-1267-1/2-2R	Non-Conductive Single Sided	Embossed Aluminum Foil	2 in	50.8 mm	Rectangular	Shielding Sheet	0.13 mm	0.005 in
3M (TC) 5-1267-2S	Non-Conductive Single Sided	Embossed Aluminum Foil	2 in	50.8 mm	Square	Shielding Sheet	0.13 mm	0.005 in		2 in			50.8 mm
3M (TC) 5-1267-1/2-3R	Non-Conductive Single Sided	Embossed Aluminum Foil	3 in	76.2 mm	Rectangular	Shielding Sheet	0.13 mm	0.005 in
3M (TC) 1267-0.5-4(5)	Non-Conductive Single Sided	Embossed Aluminum Foil	4 in	101.6 mm	Rectangular	Shielding Sheet	0.13 mm	0.005 in
3M (TC) 5-1267-1.5	Non-Conductive Single Sided	Embossed Aluminum Foil			Circular	Shielding Sheet	0.13 mm	0.005 in	38.1 mm	1.5 in
3M (TC) 5-1267-3/4	Non-Conductive Single Sided	Embossed Aluminum Foil			Circular	Shielding Sheet	0.13 mm	0.005 in	19.1 mm					0.75 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

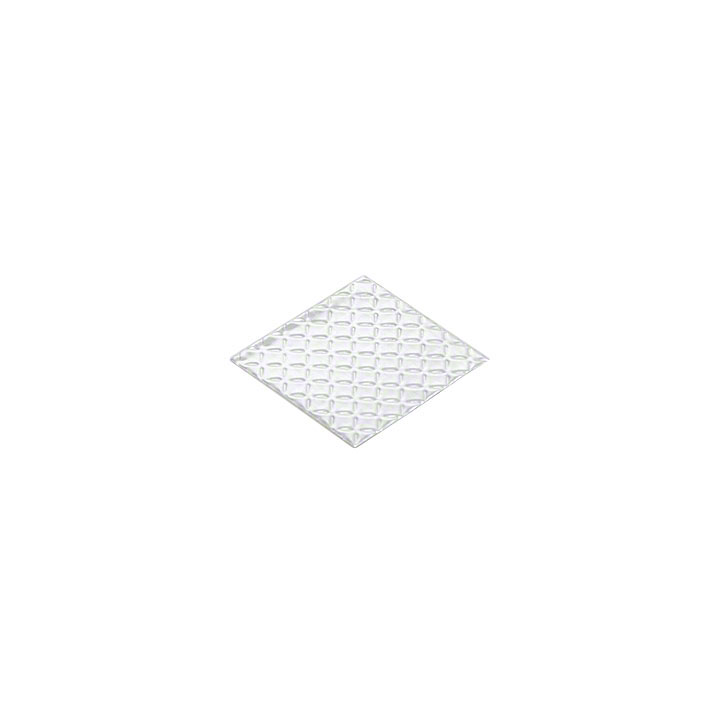

RF EMI Shielding Sheet 1267 Embossed Aluminum Foil Non-Conductive, Single Sided 0.500" (12.70mm) X 0.500" (12.70mm) X 0.005" (0.13mm)
