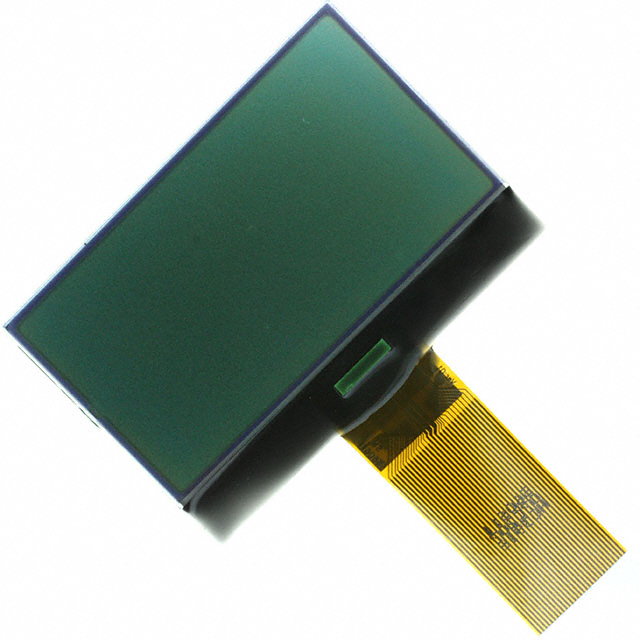

NHD-C12865AZ-RN-GBW

Obsolete

Newhaven Display Intl

LCD COG GRAPH 128X65 NO REFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD COG GRAPH 128X65 NO REFL

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD COG GRAPH 128X65 TRANSFL

Part	Display Mode	Dot Size [custom]	Dot Size [custom]	Controller Type	Interface	Display Type	Graphics Color	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [y]	Viewing Area [x]	Backlight	Background Color	Dot Size [y]	Dot Size [z]	Dot Pitch [y]	Dot Pitch [x]
Newhaven Display Intl NHD-C12865AR-FSW-GBW	Transflective	0.35 mm	0.35 mm	ST7565R	Parallel/Serial	STN - Super-Twisted Nematic	Blue	128	65	27 mm	52.6 mm	LED - White	Gray
Newhaven Display Intl NHD-C12865BR-FSW-GBW	Transflective			ST7565R	Parallel/Serial	STN - Super-Twisted Nematic	Blue	128	65	34.5 mm	60.1 mm	LED - White	Gray	0.4 mm	0.46 mm	0.49 mm	0.44 mm
Newhaven Display Intl NHD-C12865AZ-RN-GBW	Reflective	0.35 mm	0.35 mm		Parallel/Serial	STN - Super-Twisted Nematic	Gray	128	65	27 mm	52.6 mm	Without Backlight	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Gray (Green - Inverted) STN - Super-Twisted Nematic Parallel/Serial 128 x 65
