FAG.3B.306.CYC

Active

LEMO

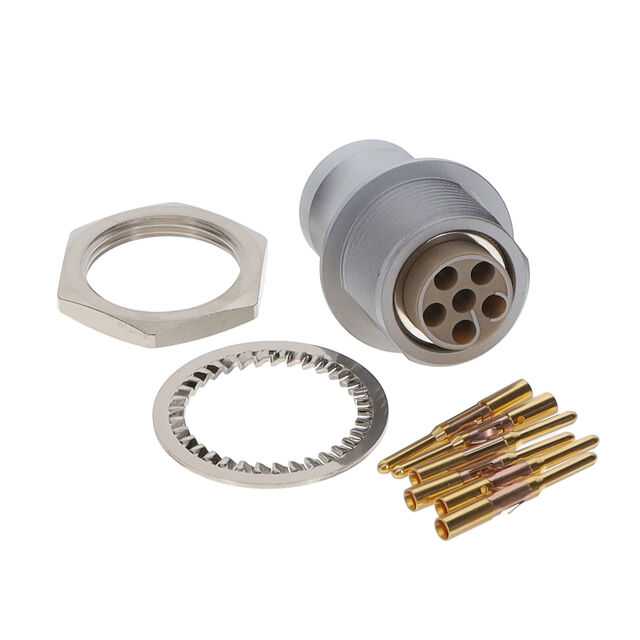

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FAG.3B.306.CYC

Active

LEMO

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.38
		10	$ 63.67
		25	$ 61.22
		50	$ 59.18
		100	$ 55.92

Description

General part information

FAG.3B Series

6 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAG.3B.306.CYC	FAG.3B Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	RG-178B, 196A
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Coaxial
Connector Type	Plug, Male Pins	Plug, Male Pins, Male Pin
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	17 A	4 - 35 A
Dielectric Material	-	Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	6	2 - 24
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	302 - 324
Shield Termination	-	Crimp
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FAG.3B Series

CONN PLUG MALE 6POS GOLD CRIMP

Part	Contact Material	Fastening Type	Shell Size - Insert	Color	Insert Material	Contact Finish - Mating	Shell Material	Number of Positions	Connector Type	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Primary Material	Current Rating (Amps)	Orientation	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Feature	Material Flammability Rating	Housing Color	Body Finish	Contact Termination	Impedance	Shield Termination	Mating Cycles	Center Contact Plating	Body Material	Dielectric Material	Number of Ports	Cable Group	Connector Style
LEMO FAG.3B.306.CYC	Brass	Push-Pull	306	Silver	Polyetheretherketone (PEEK)	Gold	Brass	6	Male Pins, Plug	Shielded	1 µm	39.4 µin	Chrome	Metal	17 A	G	IP50	-55 °C	250 °C	Crimp	Bulkhead - Rear Side Nut	UL94 V-0
LEMO FAG.3B.307.CLA	Brass	Push-Pull	307	Silver	Polyetheretherketone (PEEK)	Gold	Brass	7	Male Pins, Plug	Shielded	1 µm	39.4 µin	Chrome	Metal	15 A	G	IP50	-55 °C	250 °C		Bulkhead - Rear Side Nut	UL94 V-0
LEMO FAG.3B.324.CLA	Brass	Push-Pull	324	Silver	Polyetheretherketone (PEEK)	Gold	Brass	24	Male Pins, Plug	Shielded	1 µm	39.4 µin	Chrome	Metal	4 A	G	IP50	-55 °C	250 °C		Bulkhead - Rear Side Nut	UL94 V-0
LEMO FAG.3B.243.CLC2		Push-Pull							Male Pin, Plug								IP50	-55 °C	250 °C		Bulkhead - Rear Side Nut		Silver	Chrome	Solder Cup	50 Ohms	Crimp	5000	Gold	Brass	Polyetheretherketone (PEEK)	1	196A, RG-178B	Coaxial
