1375870-5

Active

TE Connectivity AMP Connectors

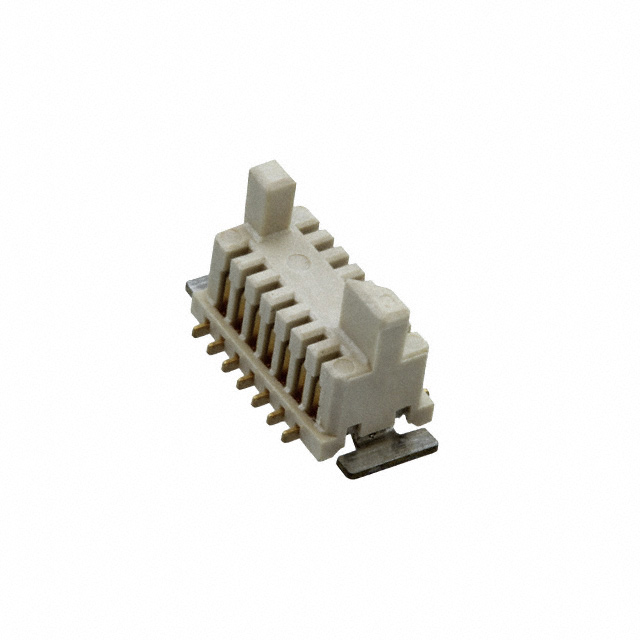

CONN RCPT 14POS 0.031 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

1375870-5

Active

TE Connectivity AMP Connectors

CONN RCPT 14POS 0.031 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.30

Description

General part information

1375870 Series

14 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1375870-5	1375870 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	0.13 Ám	0.13 Ám
Contact Finish Thickness - Post	5.11 Áin	5.11 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Female Blade Socket	Female Blade Socket
Fastening Type	Friction Lock	Friction Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.197 in	0.197 in
Insulation Height	5 mm	5 mm
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	14	6 - 40
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.031 in	0.031 in
Pitch - Mating	0.8 mm	0.8 mm
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

1375870 Series

CONN RCPT 16POS 0.031 GOLD SMD

Part	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Features	Termination	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Material	Insulation Color	Insulation Height	Insulation Height	Mounting Type	Number of Rows	Voltage Rating	Connector Type	Number of Positions	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 5-1375870-6	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle	16	UL94 V-0
TE Connectivity AMP Connectors 5-1375870-4	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	12
TE Connectivity AMP Connectors 5-1375870-3	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	10
TE Connectivity AMP Connectors 1-1375870-4	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0
TE Connectivity AMP Connectors 1375870-6	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle	16	UL94 V-0
TE Connectivity AMP Connectors 6-1375870-0	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	24
TE Connectivity AMP Connectors 5-1375870-1	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	6
TE Connectivity AMP Connectors 1375870-4	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	12
TE Connectivity AMP Connectors 1-1375870-8	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	40
TE Connectivity AMP Connectors 1375870-5	Friction Lock	0.031 in	0.8 mm	Liquid Crystal Polymer (LCP)	Gold	30 Áin	0.76 Ám	Board to Cable/Wire	85 °C	-55 °C	All	Solder Retention	Solder	Gold	0.13 Ám	5.11 Áin	Female Blade Socket	Phosphor Bronze	Natural	0.197 in	5 mm	Surface Mount	2	30 VAC	Receptacle		UL94 V-0	14
