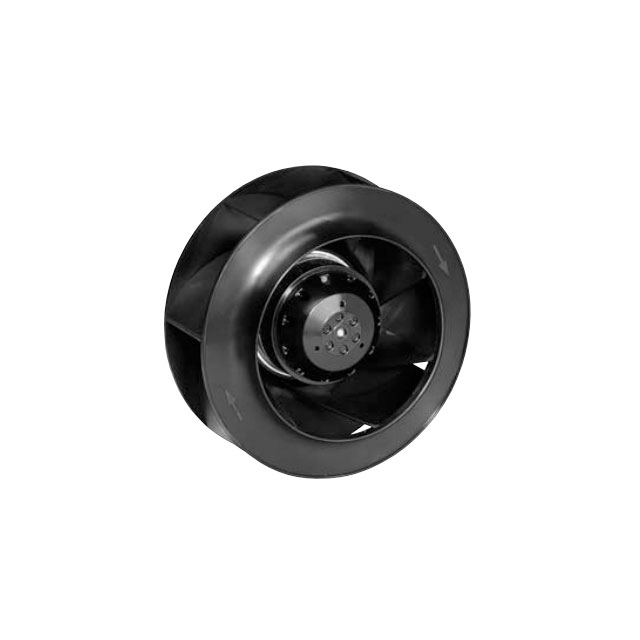

R4E225-AT15-10

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R4E225-AT15-10

Approval Agency	UL, CE
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polyamide (PA), Nylon
Operating Temperature [Max]	55 °C
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	43 W
RPM	1660 RPM
Size / Dimension [diameter]	225 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width [y]	99 mm

Part	Fan Type	Width [y]	Features	Material - Blade	Size / Dimension [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Termination	RPM	Approval Agency	Voltage - Rated	Bearing Type
ebm-papst Inc. R4E225-AT15-10	Motorized Impellers	99 mm	Capacitor Thermal Overload Protector (TOP)	Nylon Polyamide (PA)	225 mm	IP44	55 °C	55 °C	-25 °C	-25 °C	43 W	4 Wire Leads with Splice Terminals	1660 RPM	CE UL	115 VAC	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 115VAC Round - 225mm Dia Ball 4 Wire Leads with Splice Terminals
