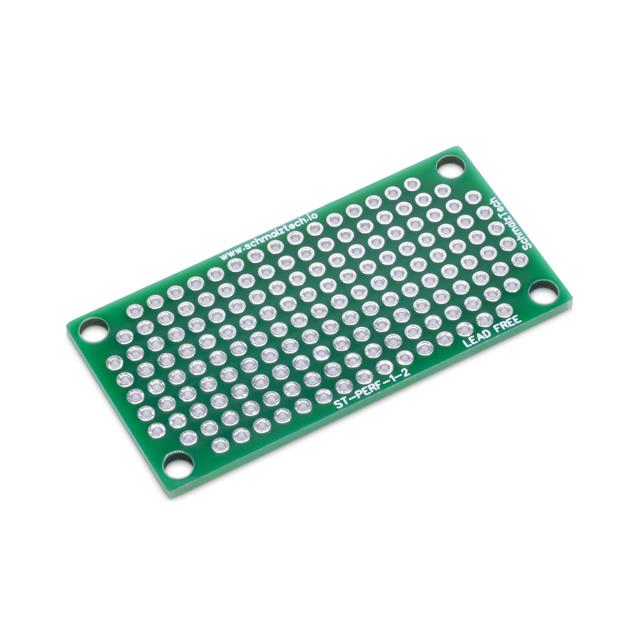

ST-PERF-1-2

Active

SchmalzTech, LLC

BREADBOARD GENERAL PURPOSE PTH

Search across all available documentation for this part.

Active

SchmalzTech, LLC

BREADBOARD GENERAL PURPOSE PTH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.1" (2.54mm) Grid

Technical documentation and resources

Parameters and characteristics commom to parts in this series

BREADBOARD GENERAL PURPOSE PTH

Part	Pitch [x]	Pitch [x]	Plating	Board Thickness	Board Thickness	Proto Board Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material	Hole Diameter	Hole Diameter	Circuit Pattern
SchmalzTech, LLC ST-PERF-1-2	2.54 mm	0.1 in	Plated Through Hole (PTH)	1.6 mm	0.063 in	Breadboard, General Purpose	50.8 mm	25.4 mm	25.4 mm	2 in	FR4 Epoxy Glass	0.042 " (inches)	1.07 mm	Pad Per Hole (Round)
SchmalzTech, LLC ST-PERF-1-4	2.54 mm	0.1 in	Plated Through Hole (PTH)	1.6 mm	0.063 in	Breadboard, General Purpose	101.6 mm		25.4 mm		FR4 Epoxy Glass	0.042 " (inches)	1.07 mm	Pad Per Hole (Round)
SchmalzTech, LLC ST-PERF-2-2	2.54 mm	0.1 in	Plated Through Hole (PTH)	1.6 mm	0.063 in	Breadboard, General Purpose	50.8 mm	2 in	50.8 mm	2 in	FR4 Epoxy Glass	0.042 " (inches)	1.07 mm	Pad Per Hole (Round)
SchmalzTech, LLC ST-PERF-1-8	2.54 mm	0.1 in	Plated Through Hole (PTH)	1.6 mm	0.063 in	Breadboard, General Purpose	203.2 mm	25.4 mm	25.4 mm	8 "	FR4 Epoxy Glass	0.042 " (inches)	1.07 mm	Pad Per Hole (Round)
SchmalzTech, LLC ST-PERF-1-1	2.54 mm	0.1 in	Plated Through Hole (PTH)	1.6 mm	0.063 in	Breadboard, General Purpose	25.4 mm	25.4 mm	25.4 mm	1 in	FR4 Epoxy Glass	0.042 " (inches)	1.07 mm	Pad Per Hole (Round)
SchmalzTech, LLC ST-PERF-1-6	2.54 mm	0.1 in	Plated Through Hole (PTH)	1.6 mm	0.063 in	Breadboard, General Purpose	152.4 mm	25.4 mm	25.4 mm	6 in	FR4 Epoxy Glass	0.042 " (inches)	1.07 mm	Pad Per Hole (Round)
