MFP 1/4"CR48"BX

Active

HTSHRNK MFP 1/4"X4'(8')CLR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

MFP 1/4"CR48"BX

Active

HTSHRNK MFP 1/4"X4'(8')CLR

Deep-Dive with AI

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MFP Series

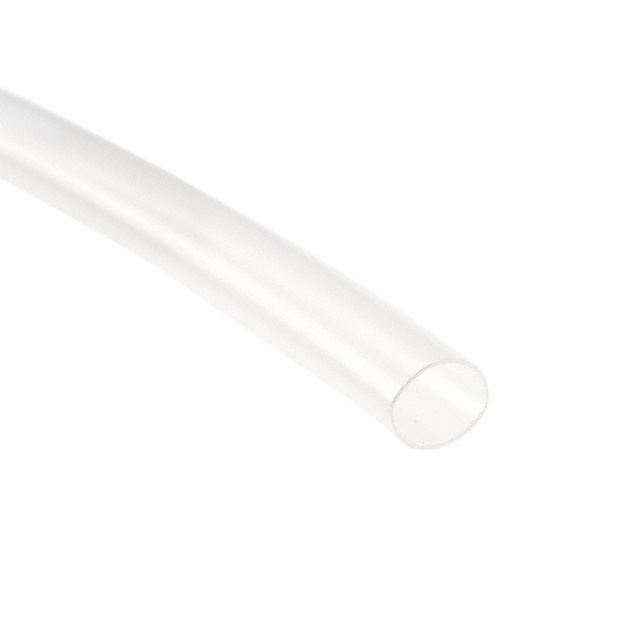

Heat Shrink Tubing, Semi Rigid 0.250" (6.35mm) 2 to 1 Clear 4.00' (1.22m)

Documents

Technical documentation and resources

Datasheet

Heat Shrink Tubing and Devices Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MFP 1/4"CR48"BX	MFP Series

Color	Clear	Clear
Features	Chemical Resistant, Fuel Resistant, Abrasion and Cut Resistant, Flame Retardant, Solvent Resistant	Chemical Resistant, Fuel Resistant, Abrasion and Cut Resistant, Flame Retardant, Solvent Resistant, Header Label
Inner Diameter - Recovered	3.18 mm	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.023 - 25.4 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered	-	0.58 mm
Inner Diameter - Recovered [diameter]	0.125 in	0.031 - 1 in
Inner Diameter - Supplied	-	2.36 mm
Inner Diameter - Supplied [diameter]	0.25 in	0.046 - 2 in
Inner Diameter - Supplied [diameter]	6.35 mm	0.093 - 50.8 mm
Length	-	0.75 - 6 "
Length	-	19.05 - 152.4 mm
Length	-	0.062 - 0.25 ft
Length	-	4 "
Length	-	0.5 '
Length [x]	2 ', 4 ft	0.333 - 4 '
Length [x]	609.6 mm, 1.22 m	1.22 - 609.6 mm
Material	Polyvinylidene Fluoride (PVDF), Irradiated	Polyvinylidene Fluoride (PVDF), Irradiated
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.3 mm	0.25 - 0.48 mm
Recovered Wall Thickness	0.012 in	0.01 - 0.019 in
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	-	175 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Semi Rigid	Tubing, Semi Rigid

MFP Series

HTSHRNK MFP 1/4"X4'(8')CLR

Part	Length [x]	Length [x]	Material	Shrinkage Ratio	Color	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Length	Length	Length	Shrink Temperature	Length [x]	Inner Diameter - Recovered
3M MFP 1/4"CR48"BX	2 ', 4 ft	1.22 m, 609.6 mm	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.25 in	6.35 mm	Tubing, Semi Rigid	0.125 in	3.18 mm	27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.3 mm	0.012 in
3M MFP-5/8-48"-CLEAR-50 PCS	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.625 in	15.88 mm	Tubing, Semi Rigid	0.313 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.36 mm	0.014 "	7.95 mm
3M MFP 3/8" CR 48" BX	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.375 in	9.53 mm	Tubing, Semi Rigid	0.187 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.3 mm	0.012 in	4.75 mm	0.75 ", 3 "	19.05 mm, 76.2 mm	0.062 ', 0.25 ft	175 °C
3M MFP 3/16" CR 48"BX	0.333 ft, 4 ft	1.22 m, 101.6 mm	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.187 in	4.75 mm	Tubing, Semi Rigid		2.36 mm	27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.25 mm	0.01 in		0.75 ", 1 in, 1.5 ", 2 "	19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm	0.062 ', 0.083 ft, 0.125 ', 0.167 '	175 °C	4 "	0.093 in
3M MFP-3/4-48-CLEAR-BULK	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture			Tubing, Semi Rigid	0.375 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.43 mm	0.017 in	9.53 mm
3M MFP-3/8-48"-CLEAR-125 PCS	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.375 in	9.53 mm	Tubing, Semi Rigid	0.187 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.3 mm	0.012 in	4.75 mm
3M MFP-1/8-CLEAR	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.125 "	3.18 mm	Tubing, Semi Rigid	0.062 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.25 mm	0.01 in	1.57 mm
3M MFP 3/16"CR48"BX	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.187 in	4.75 mm	Tubing, Semi Rigid		2.36 mm	27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.25 mm	0.01 in							0.093 in
3M MFP 3/8"CR48"BX	2 ', 4 ft	1.22 m, 609.6 mm	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.375 in	9.53 mm	Tubing, Semi Rigid	0.187 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.3 mm	0.012 in	4.75 mm				175 °C
3M MFP-1/2-48"-CLEAR-100 PCS	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF), Irradiated	2 to 1	Clear	Date of Manufacture	0.5 in	12.7 mm	Tubing, Semi Rigid	0.25 in		27 °C, 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant, Chemical Resistant, Flame Retardant, Fuel Resistant, Solvent Resistant	0.3 mm	0.012 in	6.35 mm
