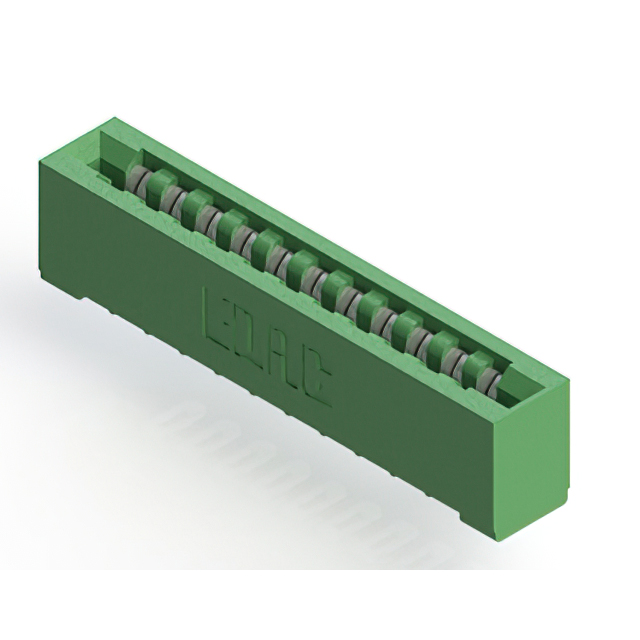

807-011-454-101

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-011-454-101

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-011-454-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

807-011 Series

...

Part	Gender	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Contact Finish	Color	Termination Rows	Termination	Read Out	Number of Rows	Contact Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Flange Feature	Flange Feature	Flange Feature	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 807-011-431-112	Female	Copper Alloy	Non Specified - Single Edge	11	Tin	Green	1	Solder	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Through Hole
EDAC Inc. 807-011-545-103	Female	Copper Alloy	Non Specified - Single Edge	11	Gold	Green	1	Wire Wrap	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Floating Bobbin Flush Mount			Through Hole	0.116 in	2.95 mm	10 Áin	0.25 Ám
EDAC Inc. 807-011-453-112	Female	Copper Alloy	Non Specified - Dual Edge	11	Tin	Green	1	Solder	Dual	2	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Through Hole Right Angle
EDAC Inc. 807-011-454-101	Female	Copper Alloy	Non Specified - Dual Edge	11	Tin	Green	1	Solder	Dual	2	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)				Through Hole Right Angle
EDAC Inc. 807-011-445-107	Female	Copper Alloy	Non Specified - Single Edge	11	Tin	Green	1	Wire Wrap	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Flush Mount M3 Threaded Insert Top Opening			Through Hole
EDAC Inc. 807-011-501-101	Female	Copper Alloy	Non Specified - Dual Edge	11	Gold	Green	1	Solder Eyelet(s)	Dual	2	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)				Through Hole			10 Áin	0.25 Ám
EDAC Inc. 807-011-545-112	Female	Copper Alloy	Non Specified - Single Edge	11	Gold	Green	1	Wire Wrap	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Through Hole			10 Áin	0.25 Ám
EDAC Inc. 807-011-447-102	Female	Copper Alloy	Non Specified - Single Edge	11	Tin	Green	1	Wire Wrap	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Flush Mount Top Opening Unthreaded			Through Hole	0.128 "	3.25 mm
EDAC Inc. 807-011-427-102	Female	Copper Alloy	Non Specified - Single Edge	11	Tin	Green	1	Solder	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Flush Mount Top Opening Unthreaded			Through Hole	0.128 "	3.25 mm
EDAC Inc. 807-011-527-104	Female	Copper Alloy	Non Specified - Single Edge	11	Gold	Green	1	Solder	Single	1	Semi Bellows	0.156 in	3.96 mm	125 °C	-40 °C	11	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	Flush Mount Top Opening Unthreaded			Through Hole	0.156 in	3.96 mm	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 116.81
Newark	Each	1	$ 140.18
		100	$ 83.32
		250	$ 76.91
		500	$ 72.68
		1000	$ 55.88

Description

General part information

807-011 Series

22 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
