PA-SSD6SM18-24

Active

Logical Systems Inc.

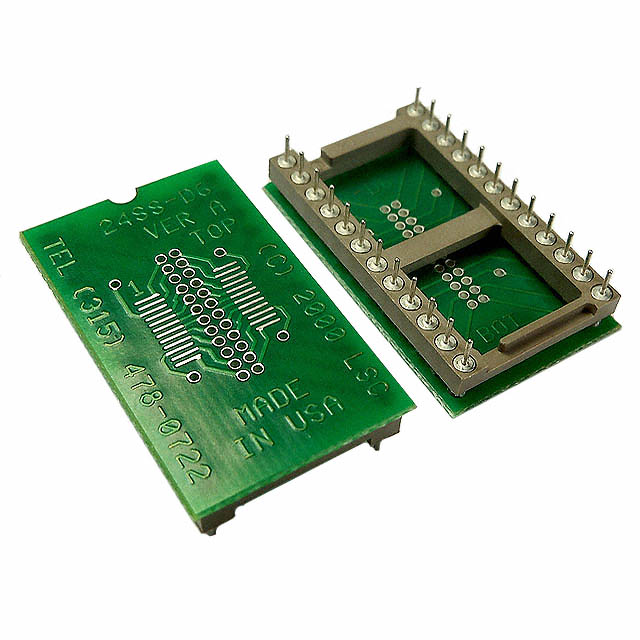

ADAPTER 24TSSOP TO 24DIP

Search across all available documentation for this part.

Active

Logical Systems Inc.

ADAPTER 24TSSOP TO 24DIP

Technical Specifications

Parameters and characteristics commom to parts in this series

ADAPTER 32TSSOP TO 32DIP

Part	Package Accepted	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Pitch [x]	Pitch [x]	Proto Board Type	Number of Positions
Logical Systems Inc. PA-SSD6SM18-32	SSOP, TSSOP	0.75 in	1.65 in	41.91 mm	19.05 mm	0.026 in	0.65 mm	SMD to DIP
Logical Systems Inc. PA-SSD6SM18-24	SSOP, TSSOP	0.75 in	1.25 "	31.75 mm	19.05 mm	0.026 in	0.65 mm	SMD to DIP	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.00

General part information

ADAPTER 24TSSOP TO 24DIP
