General part information

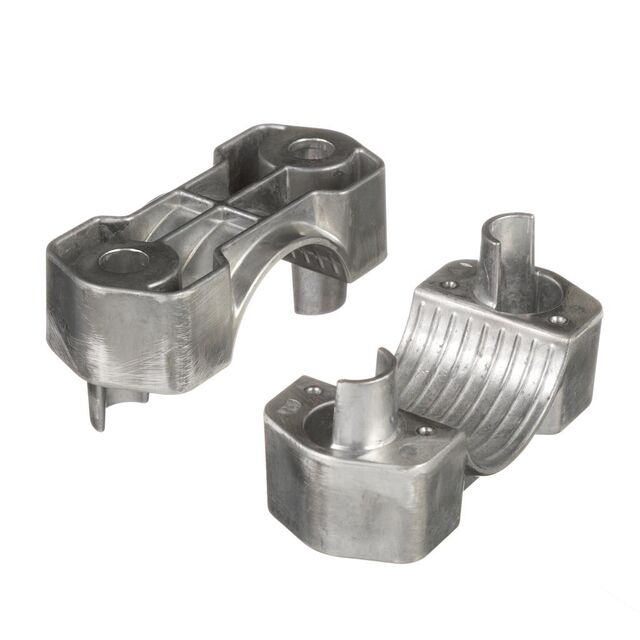

Cable Clamp, Cleat Natural
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | CCAL2H7083-X | CCAL2H Series |
|---|---|---|
| Color | Natural | Natural |
| Height [z] | 3.39 in | 2.36 - 4.53 in |
| Height [z] | 86.11 mm | 59.94 - 115.06 mm |
| Length | 145.03 mm | 131.57 - 174.5 mm |
| Length | 5.71 in | 5.18 - 5.71 " |
| Length | - | 4.52 - 6.87 in |
| Length | - | 114.81 mm |
| Material | Aluminum | Aluminum |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width | - | 42.93 - 49.02 mm |
| Width | - | 1.69 - 1.93 in |
| Width [x] | 45.97 mm | 44.45 - 45.97 mm |
| Width [x] | 1.81 in | 1.75 - 1.81 in |
CABLE MOUNTING & ACCESSORIES CABLE CLEAT, ALUMINUM, 2-HOLE CONFIGURAT
| Part | Material | Length | Length | Color | Height [z] | Height [z] | Type | Width [x] | Width [x] | Type Attributes | Width [y] | Width [y] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCAL2H5870-X | Aluminum | 5.18 " | 131.57 mm | Natural | 72.9 mm | 2.87 in | Clamp, Cleat | 44.45 mm | 1.75 in | Adjustable | ||||
Panduit Corp CCAL2H97109-X | Aluminum | 174.5 mm | Natural | 115.06 mm | 4.53 in | Clamp, Cleat | Adjustable | 49.02 mm | 1.93 in | 6.87 in | ||||
Panduit Corp CCAL2H4658-X | Aluminum | Natural | 59.94 mm | 2.36 in | Clamp, Cleat | Adjustable | 42.93 mm | 1.69 in | 4.52 " | 114.81 mm | ||||
Panduit Corp CCAL2H7083-X | Aluminum | 5.71 in | 145.03 mm | Natural | 86.11 mm | 3.39 in | Clamp, Cleat | 45.97 mm | 1.81 in | Adjustable |
