842-046-544-103
ActiveEDAC Inc.

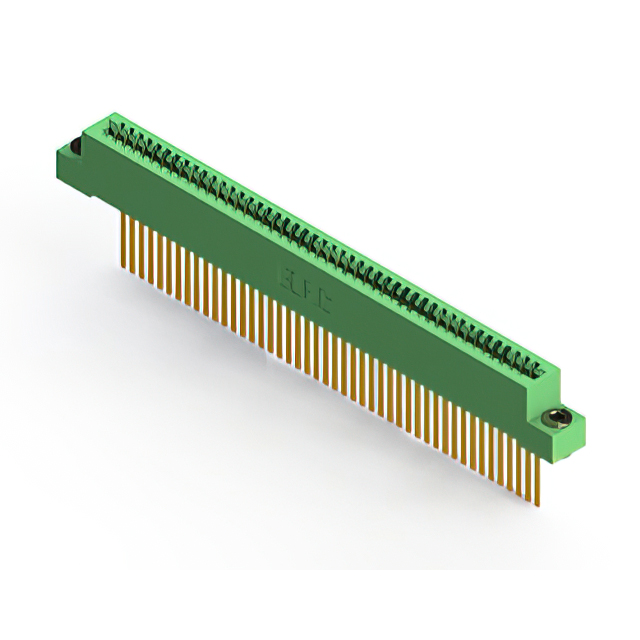

CONN EDGE SINGLE FML 46POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-046-544-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 46POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-046-544-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 46 |
| Number of Positions/Bay/Row [custom] | 46 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
842-046 Series
...
| Part | Pitch [x] | Pitch [x] | Color | Number of Positions | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Number of Rows | Material - Insulation | Termination Rows | Mounting Type | Card Type | Contact Finish | Contact Material | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | 2 | Diallyl Phthalate (DAP) | 2 | Through Hole Right Angle | Non Specified - Dual Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | |||
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | 2 | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 23 | 2 | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Wire Wrap | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Wire Wrap | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole Right Angle | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
EDAC Inc. | 2.54 mm | 0.1 in | Green | 46 | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 46 | 1 | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | Gold | Copper Alloy | Female | 10 Áin | 0.25 Ám | Solder | Cantilever | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 153.56 | |
Description
General part information
842-046 Series
46 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
