482W101-16-CA-012

Active

Cicoil

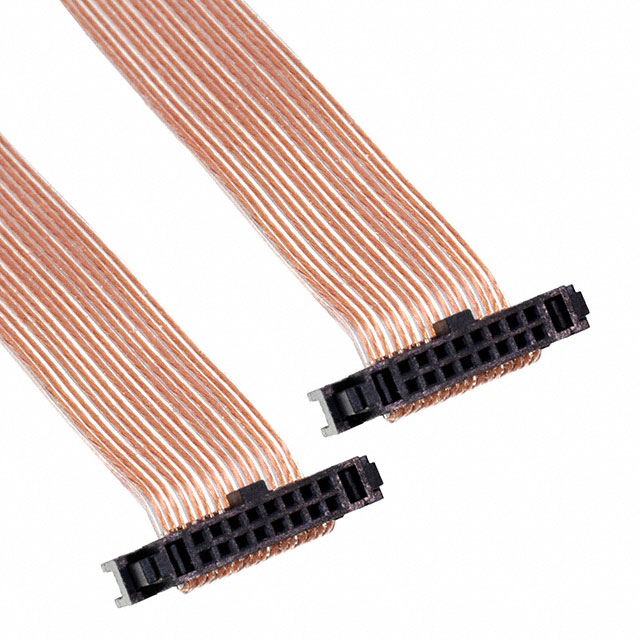

IDC RIBBON CABLE ASSMBLY 12' 16C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

482W101-16-CA-012

Active

Cicoil

IDC RIBBON CABLE ASSMBLY 12' 16C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.24

Description

General part information

482W101 Series

16 Position Cable Assembly Rectangular Socket to Socket 12.0' (3.66m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	482W101-16-CA-012	482W101 Series

Cable Termination	IDC	IDC
Cable Type	-	Flat Cable
Color	Clear, Ribbon	Clear, Ribbon
Conductor Material	-	Copper, Bare
Connector Type	Socket to Socket	Socket to Socket
Current Rating (Amps)	-	0.2 A
Features	Friction Lock	Friction Lock
Jacket Color	-	Clear
Length	3.66 m	1.83 - 76.2 m
Length	12 ft	6 - 3000 ft
Length	-	3.05 - 914.4 m
Length	-	3 - 100 ft
Number of Conductors	-	10 - 34
Number of Positions	16	16
Number of Positions	-	10 - 34
Number of Rows	1	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	260 ░C
Pitch	-	0.64 mm
Pitch	-	0.025 in
Pitch - Cable	0.64 mm	0.64 mm
Pitch - Cable [x]	0.025 in	0.025 in
Pitch - Connector	0.025 in	0.025 in
Pitch - Connector	0.64 mm	0.64 mm
Ribbon Thickness	-	0.026 in
Ribbon Thickness	-	0.66 mm
Ribbon Width	-	0.25 - 0.85 in
Ribbon Width	-	6.35 - 21.59 mm
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Ribbon Width	-	8.89 mm
Ribbon Width	-	0.35 "
Shielding	Unshielded	Unshielded
Voltage	-	300 V
Wire Gauge	-	30 AWG
