EHSVHS2X
ActiveSwitchcraft Inc.

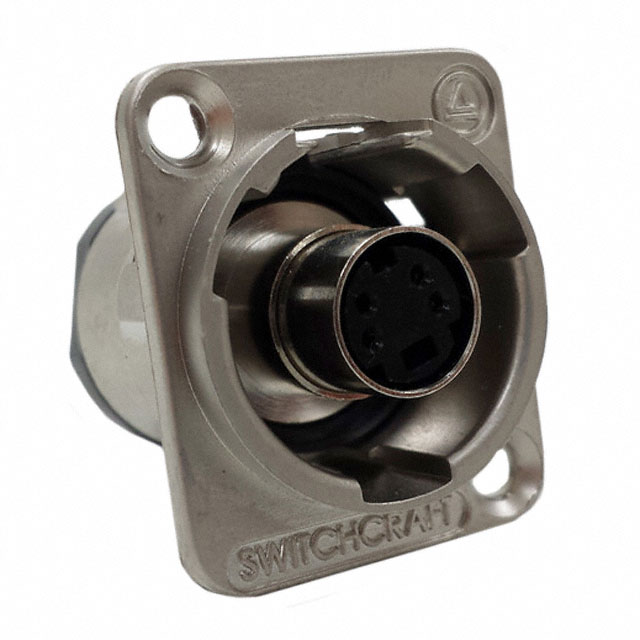

CONN AUDIO F 4 POS ST PANEL MOUNT 4 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHSVHS2X
ActiveSwitchcraft Inc.
CONN AUDIO F 4 POS ST PANEL MOUNT 4 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHSVHS2X | EHSVHS Series |
|---|---|---|
| Connector Style | Standard | Standard |
| Convert From (Adapter End) | Female Sockets | Female Sockets |
| Convert To (Adapter End) | Female Sockets | Female Sockets |
| Fastening Type | Latch Lock | Latch Lock |
| Features | - | Mounting Hardware |
| Housing Color | Silver | Silver, Black |
| Housing Finish | Nickel | Nickel |
| Housing Material | Zinc Alloy | Zinc Alloy |
| Mounting Feature | Flange | Flange |
| Number of Positions (Convert From) | 4 | 4 |
| Number of Positions (Convert To) | 4 | 4 |
| Orientation (Convert From) | Keyed | Keyed |
| Orientation (Convert To) | Keyed | Keyed |
| Shell Size - Insert (Convert From) | MiniDIN | MiniDIN |
| Shell Size - Insert (Convert To) | MiniDIN | MiniDIN |
| Shielding | Shielded | Shielded |
EHSVHS Series
CONN AUDIO F 4 POS ST PANEL MOUNT 4 TERMINAL 1 PORT
| Part | Housing Color | Orientation (Convert To) | Number of Positions (Convert To) | Connector Style | Number of Positions (Convert From) | Housing Material | Mounting Feature | Convert To (Adapter End) | Convert From (Adapter End) | Shell Size - Insert (Convert From) | Housing Finish | Fastening Type | Orientation (Convert From) | Shell Size - Insert (Convert To) | Shielding | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EHSVHS2X | Silver | Keyed | 4 | Standard | 4 | Zinc Alloy | Flange | Female Sockets | Female Sockets | MiniDIN | Nickel | Latch Lock | Keyed | MiniDIN | Shielded | |
Switchcraft Inc. EHSVHS2BX | Black | Keyed | 4 | Standard | 4 | Zinc Alloy | Flange | Female Sockets | Female Sockets | MiniDIN | Nickel | Latch Lock | Keyed | MiniDIN | Shielded | |
Switchcraft Inc. EHSVHS2BPKG | Black | Keyed | 4 | Standard | 4 | Zinc Alloy | Flange | Female Sockets | Female Sockets | MiniDIN | Nickel | Latch Lock | Keyed | MiniDIN | Shielded | Mounting Hardware |
Switchcraft Inc. EHSVHS2PKG | Silver | Keyed | 4 | Standard | 4 | Zinc Alloy | Flange | Female Sockets | Female Sockets | MiniDIN | Nickel | Latch Lock | Keyed | MiniDIN | Shielded | Mounting Hardware |
