EHSVHS2BX

Active

Switchcraft Inc.

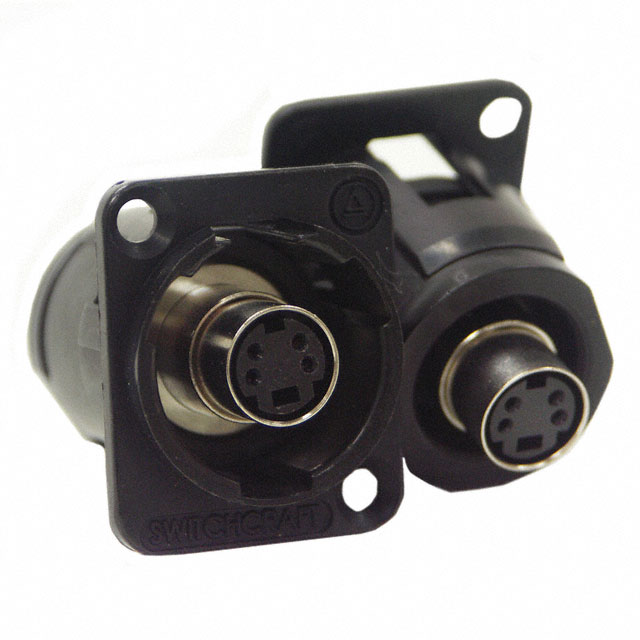

CONN ADAPTER 4P-4P F-F PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN ADAPTER 4P-4P F-F PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.70

General part information

Circular Connector Standard 4/4 Female Sockets/Female Sockets Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EHSVHS2BX	EHSVHS Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets	Female Sockets
Convert To (Adapter End)	Female Sockets	Female Sockets
Fastening Type	Latch Lock	Latch Lock
Features	-	Mounting Hardware
Housing Color	Black	Silver, Black
Housing Finish	Nickel	Nickel
Housing Material	Zinc Alloy	Zinc Alloy
Mounting Feature	Flange	Flange
Number of Positions (Convert From)	4	4
Number of Positions (Convert To)	4	4
Orientation (Convert From)	Keyed	Keyed
Orientation (Convert To)	Keyed	Keyed
Shell Size - Insert (Convert From)	MiniDIN	MiniDIN
Shell Size - Insert (Convert To)	MiniDIN	MiniDIN
Shielding	Shielded	Shielded

CONN AUDIO F 4 POS ST PANEL MOUNT 4 TERMINAL 1 PORT

Part	Housing Color	Orientation (Convert To)	Number of Positions (Convert To)	Connector Style	Number of Positions (Convert From)	Housing Material	Mounting Feature	Convert To (Adapter End)	Convert From (Adapter End)	Shell Size - Insert (Convert From)	Housing Finish	Fastening Type	Orientation (Convert From)	Shell Size - Insert (Convert To)	Shielding	Features
Switchcraft Inc. EHSVHS2X	Silver	Keyed	4	Standard	4	Zinc Alloy	Flange	Female Sockets	Female Sockets	MiniDIN	Nickel	Latch Lock	Keyed	MiniDIN	Shielded
Switchcraft Inc. EHSVHS2BX	Black	Keyed	4	Standard	4	Zinc Alloy	Flange	Female Sockets	Female Sockets	MiniDIN	Nickel	Latch Lock	Keyed	MiniDIN	Shielded
Switchcraft Inc. EHSVHS2BPKG	Black	Keyed	4	Standard	4	Zinc Alloy	Flange	Female Sockets	Female Sockets	MiniDIN	Nickel	Latch Lock	Keyed	MiniDIN	Shielded	Mounting Hardware
Switchcraft Inc. EHSVHS2PKG	Silver	Keyed	4	Standard	4	Zinc Alloy	Flange	Female Sockets	Female Sockets	MiniDIN	Nickel	Latch Lock	Keyed	MiniDIN	Shielded	Mounting Hardware
