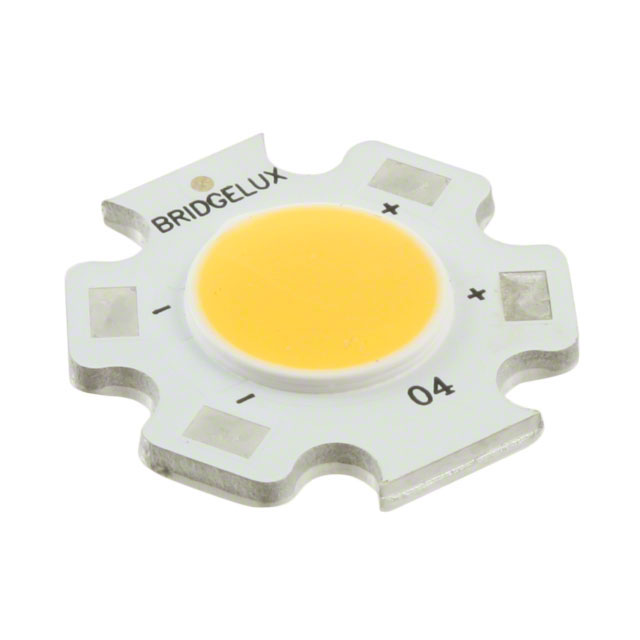

BXRA-30G0740-A-00

Obsolete

BRIDGELUX

LED COB ES WH STARBRD 3000K

BXRA-30G0740-A-00

Obsolete

BRIDGELUX

LED COB ES WH STARBRD 3000K

Description Specifications Series Pricing CAD Documents

Description

General part information

BXRA-30 Series

LED Lighting COBs Engines Modules Chip On Board (COB) ES STAR White, Warm Starboard

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-30G0740-A-00

CCT (K)	3000 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	90
Current - Max	350 mA
Current - Test	350 mA
Height	3 mm
Lens Type	Domed
Lumens/Watt	82 lm/W
Luminous Flux (Typical)	780 lm
Size / Dimension Length	19.9 mm
Size / Dimension Width	19.9 mm
Temperature - Test	25 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	27.3 V

BXRA-30 Series

Part	Current - Max	Luminous Flux (Typical)	Temperature - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension Length	Size / Dimension Width	Configuration	Color	Type	CCT (K)	CCT Description	CRI (Color Rendering Index)	Lumens/Watt	Viewing Angle	Current - Test	Lens Type	Height
BRIDGELUX BXRA-30G7000-J-03	3.5 A	6800 lm	25 °C	29.4 V	45.6 mm	2 in	Square	Warm White	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	90	83 lm/W	120 °	2.8 A	Domed	3 mm
BRIDGELUX BXRA-30G0740-A-00	350 mA	780 lm	25 °C	27.3 V	19.9 mm	19.9 mm	Starboard	Warm White	Chip On Board (COB)	3000 K		90	82 lm/W	120 °	350 mA	Domed	3 mm
BRIDGELUX BXRA-30E1200-B-00	750 mA	1475 lm	25 °C	29.6 V	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3000 K		80	100 lm/W	120 °	500 mA	Domed	3 mm
BRIDGELUX BXRA-30E4000-H-03	2.8 A	5040 lm	25 °C	23.4 V	45.6 mm	2 in	Square	Warm White	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	80	102 lm/W	120 °	2.1 A	Domed	3 mm
BRIDGELUX BXRA-30G4000-H-00	2.8 A	4260 lm	25 °C	23.5 V	45.6 mm	2 in	Square	Warm White	Chip On Board (COB)	3000 K		90	86 lm/W	120 °	2.1 A	Domed	3 mm
BRIDGELUX BXRA-30G2000-B-00	750 mA	2000 lm	25 °C	37 V	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3000 K		90	77 lm/W	120 °	700 mA	Domed	3 mm
BRIDGELUX BXRA-30G0800-B-00	750 mA	890 lm	25 °C	20.7 V	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3000 K		90	86 lm/W	120 °	500 mA	Domed	3 mm
BRIDGELUX BXRA-30E2000-B-00	750 mA	2400 lm	25 °C	37 V	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3000 K		80	93 lm/W	120 °	700 mA	Domed	3 mm
BRIDGELUX BXRA-30E0800-B-03	750 mA	1010 lm	25 °C	20.7 V	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	80	98 lm/W	120 °	500 mA	Domed	3 mm
BRIDGELUX BXRA-30G0800-B-03	750 mA	890 lm	25 °C	20.7 V	22.8 mm	25.8 mm	Rectangle	Warm White	Chip On Board (COB)	3000 K	3-Step MacAdam Ellipse	90	86 lm/W	120 °	500 mA	Domed	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BXRA-30G0740-A-00 | Datasheet
