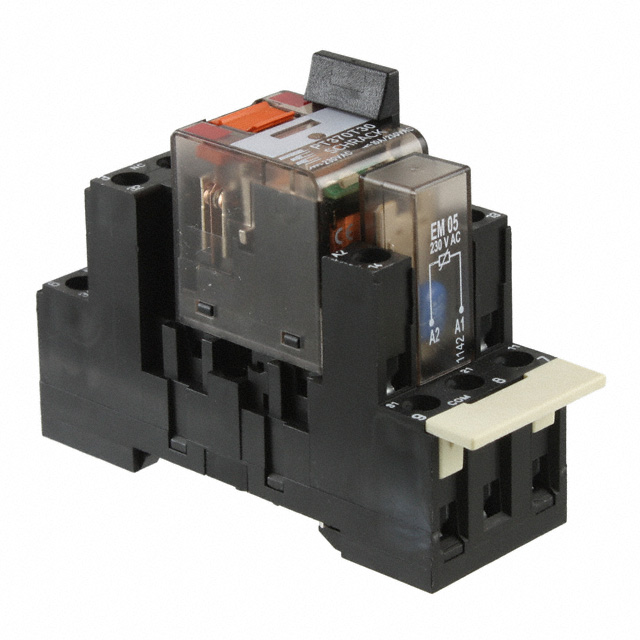

PT3S7TD0

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PDT 10A 230V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PDT 10A 230V

Technical Specifications

Parameters and characteristics for this part

Specification	PT3S7TD0

Approval Agency	cURus, VDE
Coil Current	11.8 mA
Coil Insulation	Class F
Coil Resistance	19.47 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Socket Included, Lighted Indicator, Mechanical Indicator, Test Button
Load - Max Switching	4000 VA
Mounting Type	DIN Rail
Must Operate Voltage	184 VAC
Must Release Voltage	69 VAC
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	400 VAC
Termination Style	Screw Terminal

Part	Contact Material	Relay Type	Coil Type	Termination Style	Must Operate Voltage	Features	Switching Voltage [Max]	Coil Current	Must Release Voltage	Coil Voltage	Contact Rating (Current)	Mounting Type	Contact Form	Load - Max Switching	Coil Resistance	Approval Agency	Coil Insulation	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Potter & Brumfield Relays PT3S7TD0	Silver Nickel (AgNi)	General Purpose	Non Latching	Screw Terminal	184 VAC	Lighted Indicator Mechanical Indicator Socket Included Test Button	400 VAC	11.8 mA	69 VAC	230 VAC	10 A	DIN Rail	3PDT (3 Form C)	4000 VA	19.47 kOhms	cURus VDE	Class F	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 3PDT (3 Form C) 230VAC Coil DIN Rail
