9978 007100

Active

Belden Inc.

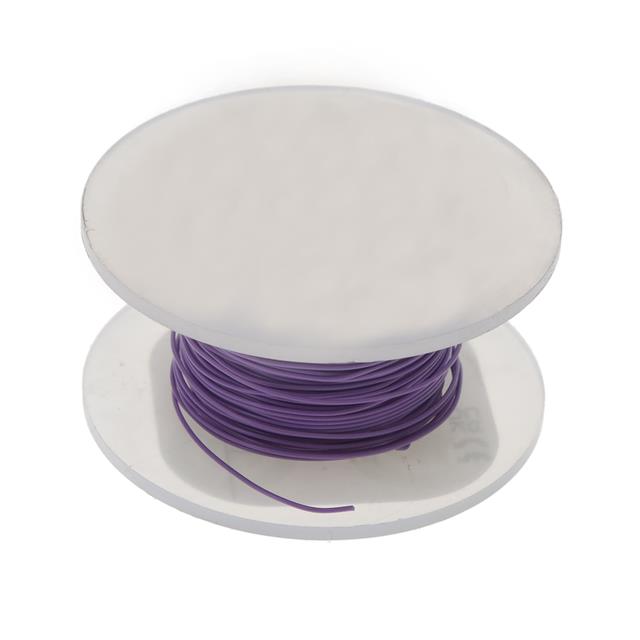

HOOK-UP SOLID 30AWG VIOLET

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP SOLID 30AWG VIOLET

Technical Specifications

Parameters and characteristics for this part

Specification	9978 007100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.03 in
Jacket (Insulation) Diameter [diameter]	0.76 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Violet
Length [x]	30.5 m
Length [x]	100 ft
Ratings	UL Style 1061
Voltage	300 V
Wire Gauge	30 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Voltage	Ratings	Wire Gauge	Cable Type	Jacket (Insulation) Material	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Length	Length
Belden Inc. 9978 007100	0.03 in	0.76 mm	30.5 m	100 ft	300 V	UL Style 1061	30 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Tinned	Violet	0.25 mm	0.01 in	Solid
Belden Inc. 9978 009100	0.03 in	0.76 mm	30.5 m	100 ft	300 V	UL Style 1061	30 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Tinned		0.25 mm	0.01 in	Solid
Belden Inc. 9978 0051000	0.03 in	0.76 mm			300 V	UL Style 1061	30 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Tinned	Green	0.25 mm	0.01 in	Solid	1000 ft	304.8 m
Belden Inc. 9978 0091000	0.03 in	0.76 mm			300 V	UL Style 1061	30 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Tinned		0.25 mm	0.01 in	Solid	1000 ft	304.8 m
Belden Inc. 9978 0031000	0.03 in	0.76 mm			300 V	UL Style 1061	30 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Tinned	Orange	0.25 mm	0.01 in	Solid	1000 ft	304.8 m
Belden Inc. 9978 004100	0.03 in	0.76 mm	30.5 m	100 ft	300 V	UL Style 1061	30 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Copper Tinned	Yellow	0.25 mm	0.01 in	Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 AWG Hook-Up Wire Solid Violet 300V 100.0' (30.5m)
