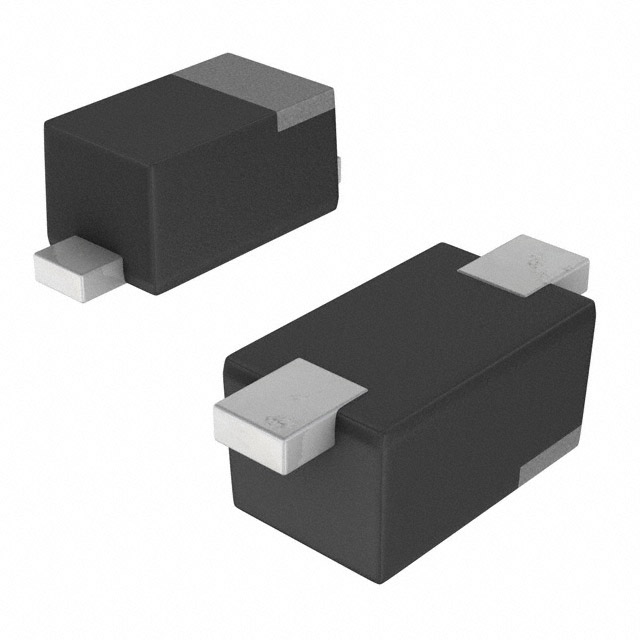

DB2U31400L

Obsolete

Panasonic Industrial Automation Sales

DIODE SCHOT 30V 30MA USSMINI2F2B

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

DIODE SCHOT 30V 30MA USSMINI2F2B

Technical Specifications

Parameters and characteristics for this part

Specification	DB2U31400L

Capacitance @ Vr, F	1.5 pF
Current - Average Rectified (Io)	30 mA
Current - Reverse Leakage @ Vr	300 nA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-923
Reverse Recovery Time (trr)	1 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	USSMINI2-F2-B
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Speed	Speed	Current - Average Rectified (Io)	Package / Case	Supplier Device Package	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction	Mounting Type	Reverse Recovery Time (trr)
Panasonic Industrial Automation Sales DB2U31400L	1 V	300 nA	Schottky	Any Speed	200 mA	30 mA	SOD-923	USSMINI2-F2-B	1.5 pF	30 V	125 °C	Surface Mount	1 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 30 V 30mA Surface Mount USSMINI2-F2-B
