2903375
ActivePhoenix Contact

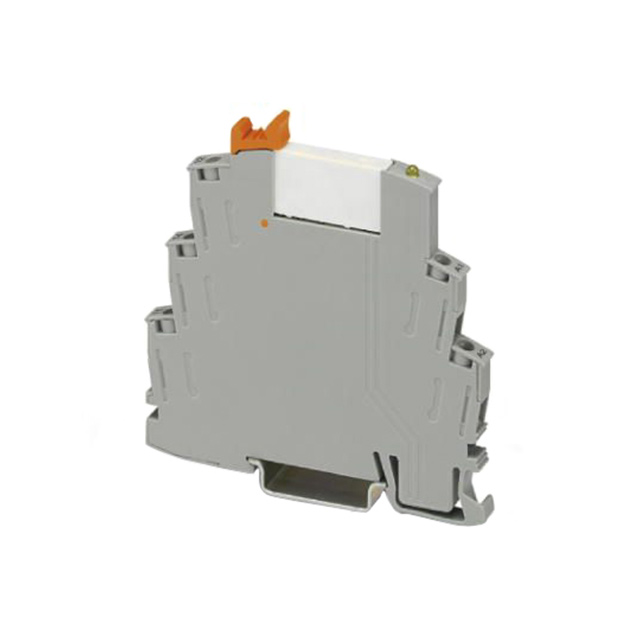

RELAY GEN PURPOSE SPDT 6A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903375
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 6A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2903375 | 29033 Series |
|---|---|---|
| Approval Agency | CSA | CSA |
| Coil Current | 16 mA | 6 - 70 mA |
| Coil Resistance | 750 Ohms | 1.3 - 750 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 230 VAC |
| Contact Form | SPDT (1 Form C) | 4PDT (4 Form C), SPDT (1 Form C), DPDT (2 Form C), SPST-NO (1 Form A), 3PDT (3 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au) |
| Contact Rating (Current) | 6 A | 5 - 50 A |
| Features | Socket Included, Diode, Lighted Indicator | Lighted Indicator, Varistor, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 5 - 18 ms |
| Operating Temperature [Max] | 60 °C | 50 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 8 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VAC |
| Termination Style | Screw Terminal | Spring Terminal, Screw Terminal |
29033 Series
ELECTROMECHANICAL RELAY 24VAC 5A 4PDT(31X75X96)MM DIN RAIL MODULE RELAY
| Part | Switching Voltage | Contact Form | Release Time | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Mounting Type | Contact Rating (Current) | Coil Current | Coil Voltage | Features | Termination Style | Relay Type | Approval Agency | Contact Material | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2903306 | 250 VAC, 250 VDC | 4PDT (4 Form C) | 20 ms | Non Latching | -40 °C | 50 °C | 15 ms | DIN Rail | 5 A | 70 mA | 24 VAC | Lighted Indicator, Socket Included, Varistor | Spring Terminal | General Purpose | CSA | Silver Nickel (AgNi) | 342.9 Ohms |
Phoenix Contact 2903374 | 250 VAC, 250 VDC | SPDT (1 Form C) | 8 ms | Non Latching | -40 °C | 60 °C | 5 ms | DIN Rail | 6 A | 9 mA | 24 VDC | Diode, Lighted Indicator, Socket Included | Screw Terminal | General Purpose | Silver Tin Oxide (AgSnO) | 2.67 kOhms | |
Phoenix Contact 2903357 | 250 VAC, 250 VDC | SPDT (1 Form C) | 20 ms | Non Latching | -40 °C | 50 °C | 12 ms | DIN Rail | 10 A | 33 mA | 24 VAC | Lighted Indicator, Socket Included, Varistor | Screw Terminal | General Purpose | CSA | Silver Nickel (AgNi) | 727 Ohms |
Phoenix Contact 2903330 | 30 VAC, 36 VDC | DPDT (2 Form C) | 10 ms | Non Latching | -40 °C | 70 °C | 8 ms | DIN Rail | 50 mA | 18 mA | 24 VDC | Diode, Lighted Indicator, Socket Included | Spring Terminal | General Purpose | Gold (Au), Silver Nickel (AgNi) | 1.3 kOhms | |
Phoenix Contact 2903370 | 250 VAC, 250 VDC | SPDT (1 Form C) | 8 ms | Non Latching | -40 °C | 60 °C | 5 ms | DIN Rail | 6 A | 9 mA | 24 VDC | Diode, Lighted Indicator, Socket Included | Spring Terminal | General Purpose | CSA | Silver Tin Oxide (AgSnO) | 2.67 kOhms |
Phoenix Contact 2903331 | 250 VAC, 250 VDC | DPDT (2 Form C) | 20 ms | Non Latching | -40 °C | 50 °C | 12 ms | DIN Rail | 8 A | 6 mA | 230 VAC | Lighted Indicator, Socket Included, Varistor | Spring Terminal | General Purpose | CSA | Silver Nickel (AgNi) | 38.33 kOhms |
Phoenix Contact 2903333 | 250 VAC, 250 VDC | DPDT (2 Form C) | 20 ms | Non Latching | -40 °C | 50 °C | 12 ms | DIN Rail | 8 A | 33 mA | 24 VAC | Lighted Indicator, Socket Included, Varistor | Spring Terminal | General Purpose | CSA | Silver Nickel (AgNi) | 727 Ohms |
Phoenix Contact 2903364 | 30 VAC, 36 VDC | SPST-NO (1 Form A) | 8 ms | Non Latching | -40 °C | 60 °C | 5 ms | DIN Rail | 50 mA | 9 mA | 24 VDC | Diode, Lighted Indicator, Socket Included | Screw Terminal | General Purpose | Silver Tin Oxide (AgSnO) | 2.67 kOhms | |
Phoenix Contact 2903317 | 250 VAC, 250 VDC | 4PDT (4 Form C) | 20 ms | Non Latching | -40 °C | 50 °C | 15 ms | DIN Rail | 5 A | 13 mA | 120 VAC | Lighted Indicator, Socket Included, Varistor | Screw Terminal | General Purpose | CSA | Silver Nickel (AgNi) | 9.23 kOhms |
Phoenix Contact 2903375 | 250 VAC, 250 VDC | SPDT (1 Form C) | 8 ms | Non Latching | -40 °C | 60 °C | 5 ms | DIN Rail | 6 A | 16 mA | 12 VDC | Diode, Lighted Indicator, Socket Included | Screw Terminal | General Purpose | CSA | Silver Tin Oxide (AgSnO) | 750 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.62 | |
Description
General part information
29033 Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil DIN Rail
