845-067-558-407

Active

EDAC Inc.

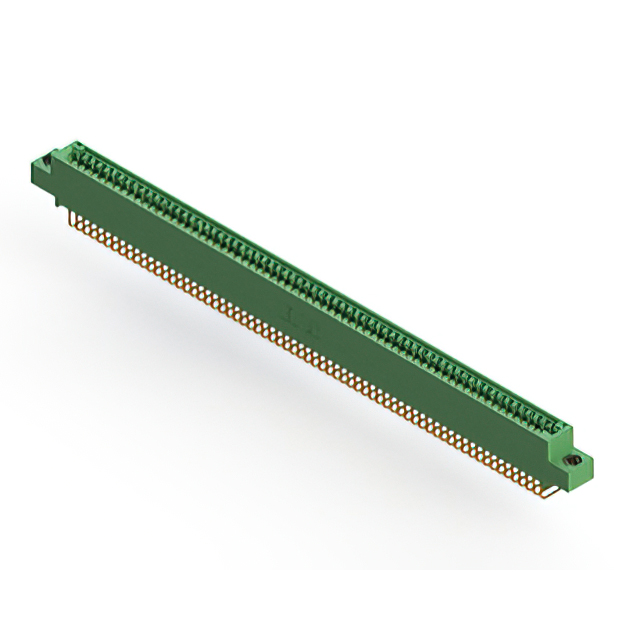

CONN EDGE SINGLE FML 67POS 0.100

845-067-558-407

Active

EDAC Inc.

CONN EDGE SINGLE FML 67POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

845-067 Series

67 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	845-067-558-407

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Threaded Insert, M3
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole, Right Angle
Number of Positions	67
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

845-067 Series

...

Part	Pitch	Card Thickness (Min)	Card Thickness (Max)	Termination	Read Out	Number of Positions	Contact Finish	Flange Feature Diameter	Flange Feature	Material - Insulation	Termination Rows	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness	Mounting Type	Color	Contact Type	Card Type	Contact Material	Gender
EDAC Inc. 845-067-542-412	0.1 in	0.054 in	0.07 in	Wire Wrap	Single	67	Gold	0.128 in	Side Mount Opening Unthreaded	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-542-602	0.1 in	0.054 in	0.07 in	Wire Wrap	Single	67	Gold	0.128 in	Top Mount Opening Unthreaded	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-524-107	0.1 in	0.054 in	0.07 in	Solder	Single	67	Gold		Flush Mount M3 Threaded Insert Top Opening	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-542-407	0.1 in	0.054 in	0.07 in	Wire Wrap	Single	67	Gold		M3 Threaded Insert Top Mount Opening	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-525-412	0.1 in	0.054 in	0.07 in	Solder	Single	67	Gold	0.128 in	Side Mount Opening Unthreaded	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-558-407	0.1 in	0.054 in	0.07 in	Solder	Single	67	Gold		M3 Threaded Insert Top Mount Opening	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Right Angle Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-524-602	0.1 in	0.054 in	0.07 in	Solder	Single	67	Gold	0.128 in	Top Mount Opening Unthreaded	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-540-112	0.1 in	0.054 in	0.07 in	Wire Wrap	Single	67	Gold	0.128 in	Flush Mount Side Opening Unthreaded	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-520-408	0.1 in	0.054 in	0.07 in	Solder	Single	67	Gold		4-40 Threaded Insert Top Mount Opening	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female
EDAC Inc. 845-067-542-604	0.1 in	0.054 in	0.07 in	Wire Wrap	Single	67	Gold	0.156 in	Top Mount Opening Unthreaded	DAP Diallyl Phthalate	1 rows	1	125 °C	-40 °C	10 Ąin	Through Hole	Green	Cantilever	Non Specified Single Edge	Copper Alloy	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

845-067-558-407 | Datasheet
