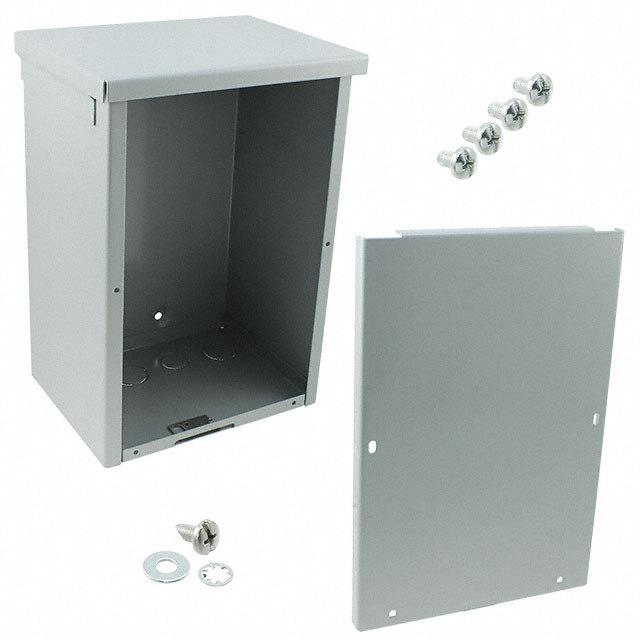

C3R1286SC

Active

Hammond Manufacturing

BOX STEEL GRAY 12"L X 8"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 12"L X 8"W

Technical Specifications

Parameters and characteristics for this part

Specification	C3R1286SC

Area (L x W)	96 in˛
Area (L x W)	619 cm˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	Knockouts, Wall Mount, Lockable
Height [z]	152.4 mm
Height [z]	6 in
Material	Metal, Steel
Ratings	IP24, UL-50, NEMA 3R
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	8 in
Size / Dimension [y]	203.2 mm
Weight	11 lbs
Weight	5 kg

Part	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Design	Weight	Weight	Color	Ratings	Features	Height [z]	Height [z]	Area (L x W)	Area (L x W)
Hammond Manufacturing C3R1286SC	Metal Steel	12 in	8 in	304.8 mm	203.2 mm	Box	Cover Included	11 lbs	5 kg	Gray	IP24 NEMA 3R UL-50	Knockouts Lockable Wall Mount	152.4 mm	6 in	96 in˛	619 cm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.39

General part information

Box Metal, Steel Gray Cover Included 12.000" L x 8.000" W (304.80mm x 203.20mm) X 6.000" (152.40mm)

Technical documentation and resources

No documents available
