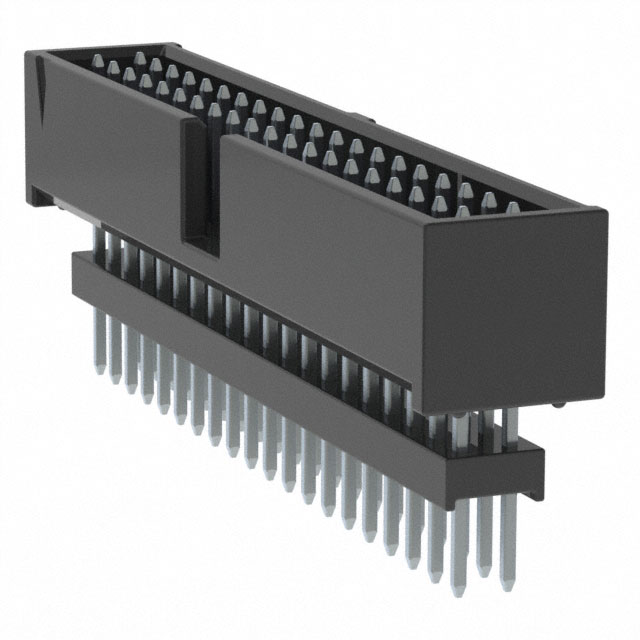

ZSS-120-02-T-D-590

Active

Samtec Inc.

CONN HDR .100" 40POS

ZSS-120-02-T-D-590

Active

Samtec Inc.

CONN HDR .100" 40POS

Description Specifications Series Pricing CAD Documents

Description

General part information

ZSS-120 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-120-02-T-D-590

Connector Type	Header, Elevated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.25 in
Contact Length - Post	0.14 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.59 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.73 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

ZSS-120 Series

...

Part	Features	Insulation Height	Contact Length - Post	Number of Positions Loaded	Overall Contact Length	Current Rating	Contact Length - Mating	Contact Shape	Termination	Insulation Color	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Connector Type	Pitch - Mating	Fastening Type	Insulation Material	Number of Positions	Contact Material	Contact Type	Contact Finish - Post	Style	Row Spacing - Mating	Material Flammability Rating	Number of Rows	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Samtec Inc. ZSS-120-09-S-D-1315	Keying Slot	1.315 in	0.115 in	All	1.43 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Gold	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
Samtec Inc. ZSS-120-02-S-D-585	Keying Slot	0.585 in	0.145 in	All	0.73 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Gold	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
Samtec Inc. ZSS-120-04-S-D-810	Keying Slot	0.81 in	0.12 in	All	0.93 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Tin	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole	30 µin
Samtec Inc. ZSS-120-03-G-D-662	Keying Slot	0.662 in	0.168 in	All	0.83 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Gold	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
Samtec Inc. ZSS-120-02-G-D-600	Keying Slot	0.6 in	0.13 in	All	0.73 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Gold	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
Samtec Inc. ZSS-120-05-G-S-915	Keying Slot	0.915 in	0.115 in	All	1.03 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	20	Phosphor Bronze	Male Pin	Gold	Board Board or Cable		UL94 V-0	1	Through Hole	10 µin	3 µin
Samtec Inc. ZSS-120-05-S-D-913	Keying Slot	0.913 in	0.117 in	All	1.03 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Tin	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole	30 µin
Samtec Inc. ZSS-120-06-L-D-1040	Keying Slot	1.04 in	0.09 in	All	1.13 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Tin	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
Samtec Inc. ZSS-120-02-T-D-590	Keying Slot	0.59 in	0.14 in	All	0.73 in	3 A	0.25 in	Square	Solder	Black	Tin	105 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Tin	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
Samtec Inc. ZSS-120-07-S-D-1095	Keying Slot	1.095 in	0.135 in	All	1.23 in	3 A	0.25 in	Square	Solder	Black	Gold	125 °C	-55 °C	Shrouded - 4 Wall	Elevated Header	0.1 in	Push-Pull	Glass Filled Polyester	40	Phosphor Bronze	Male Pin	Gold	Board Board or Cable	0.1 in	UL94 V-0	2	Through Hole
