28681.4
ActiveConta-Clip, Inc.

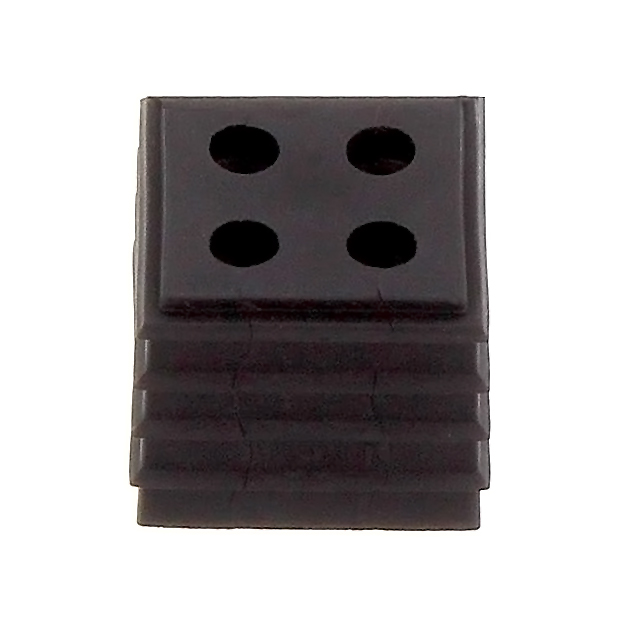

FRAME GROMMET SPLIT TPE BLACK
Deep-Dive with AI
Search across all available documentation for this part.
28681.4
ActiveConta-Clip, Inc.
FRAME GROMMET SPLIT TPE BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28681.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 4.6 mm |
| Diameter - Inside [Max] [diameter] | 0.181 in |
| Diameter - Inside [Min] [diameter] | 0.165 in |
| Diameter - Inside [Min] [diameter] | 4.2 mm |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | 4 Cable Openings |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [x] | 20.3 mm |
| Panel Cutout Dimensions [x] | 0.799 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.19 | |
| 5 | $ 5.31 | |||
| 10 | $ 5.00 | |||
| 30 | $ 4.57 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.18 | |||
| 250 | $ 3.93 | |||
| 500 | $ 3.76 | |||
| 1000 | $ 3.61 | |||
Description
General part information
28681 Series
Square - 0.799" (20.30mm) Frame Grommet, Split 0.165" ~ 0.181" (4.20mm ~ 4.60mm) Black
Documents
Technical documentation and resources
No documents available
