HPCP42F

Active

Switchcraft Inc.

CONN CIRC RCPT 4POS SILVER QC

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRC RCPT 4POS SILVER QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

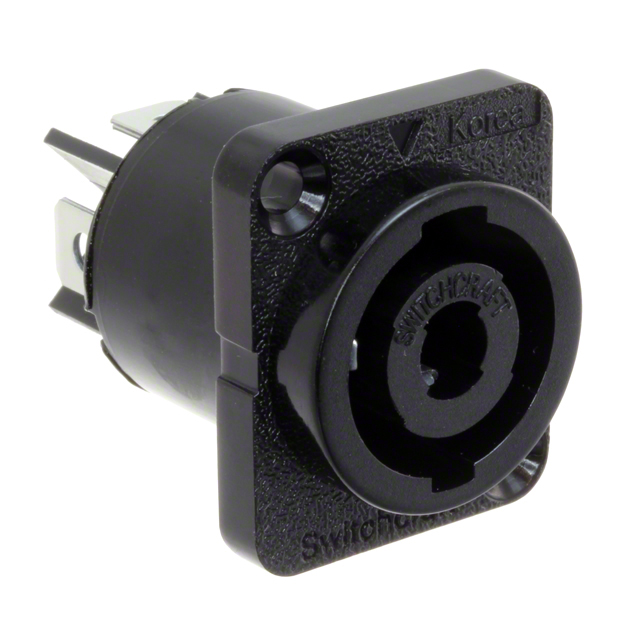

4 (Power) Position Circular Connector Receptacle, Non-Gendered Quick Connect - 0.250" (6.3mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	HPCP42F	HPCP42 Series

Applications	Audio, Medical, Industrial	Audio, Medical, Industrial
Color	Black	Black
Connector Type	Receptacle, Non-Gendered	Receptacle, Non-Gendered
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	50 A	30 - 50 A
Fastening Type	Push-Pull, Latch Lock	Push-Pull, Latch Lock
Ingress Protection	IP25	IP25
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Solder, Quick Connect

CONN CIRC RCPT 4POS SILVER SLDR

Part	Color	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Termination	Fastening Type	Mounting Type	Ingress Protection	Shielding	Orientation	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Primary Material	Applications	Mounting Feature	Contact Material	Termination	Termination
Switchcraft Inc. HPCP420PC	Black	4	Silver	30 A	Receptacle, Non-Gendered	Solder	Latch Lock, Push-Pull	Panel Mount, Through Hole	IP25	Unshielded	Keyed	Thermoplastic	85 °C	-55 °C	UL94 V-0	Plastic	Audio, Industrial, Medical	Flange	Copper Alloy
Switchcraft Inc. HPCP420RA	Black	4	Silver	30 A	Receptacle, Non-Gendered	Solder	Latch Lock, Push-Pull	Panel Mount, Right Angle, Through Hole	IP25	Unshielded	Keyed	Thermoplastic	85 °C	-55 °C	UL94 V-0	Plastic	Audio, Industrial, Medical	Flange	Copper Alloy
Switchcraft Inc. HPCP42F	Black	4	Silver	50 A	Receptacle, Non-Gendered	Quick Connect	Latch Lock, Push-Pull		IP25	Unshielded	Keyed	Thermoplastic	85 °C	-55 °C	UL94 V-0	Plastic	Audio, Industrial, Medical	Flange	Copper Alloy	0.25 in	6.3 mm
