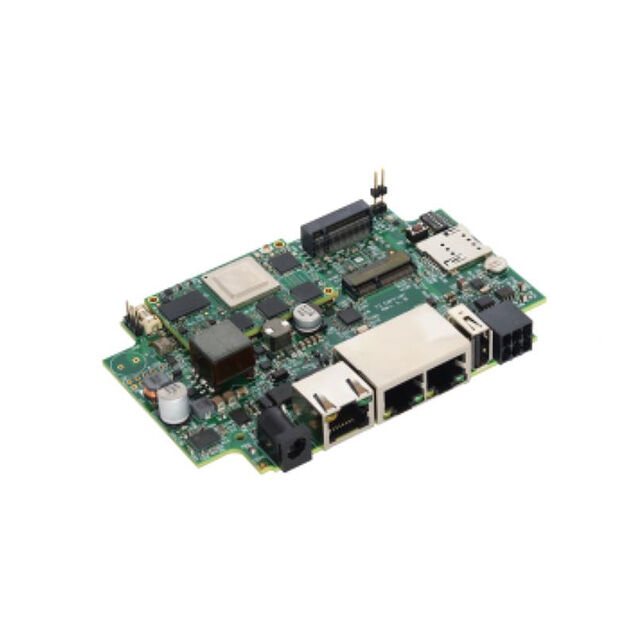

SRT6442W00D01GE008P02I0

Unknown

SolidRun LTD

SBC 1.0GHZ 1/2/4 CORE 1GB RAM

SRT6442W00D01GE008P02I0

Unknown

SolidRun LTD

SBC 1.0GHZ 1/2/4 CORE 1GB RAM

Description Specifications Series Pricing CAD Documents

Description

General part information

SRT6442W00D01GE Series

Single Board Computer 1GHz 1/2/4 Core 1GB/0GB RAM ARM Cortex-A53, Cortex-M4, Cortex-R5F

Technical Specifications

Parameters and characteristics for this part

Specification	SRT6442W00D01GE008P02I0

Core Processor	Cortex-R5F, ARM Cortex-A53, Cortex-M4
Ethernet Ports	3
Ethernet Speed Options	10Mbps, 1000Mbps, 100Mbps
Expansion Site/Bus	CAN, PCIe, SPI, UART, I2C, SD, GPIO
Maximum Number of Cores	4
Minimum Number of Cores	1
Number of Cores	1, 2, 4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
RAM Capacity	1 GB
RAM Installed	0 GB
Serial Interface Count	2
Size / Dimension Length	1.85 in
Size / Dimension Width	1.18 in
Speed	1 GHz
Storage Interface	SD, eMMC
Supported Serial Standards	RS-485, RS-422, RS-232
Typical Number of Cores	2
USB	USB 2.0
USB 2.0 Count	1 count
Watchdog Timer	No

SRT6442W00D01GE Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Watchdog Timer	RAM Capacity	Typical Number of Cores	Number of Cores	Minimum Number of Cores	Maximum Number of Cores	USB 3.0 Count	USB	Expansion Site/Bus	Core Processor	Storage Interface	Size / Dimension Width	Size / Dimension Length	Ethernet Ports	Ethernet Speed Options	Speed	Serial Interface Count	Supported Serial Standards	USB 2.0 Count
SolidRun LTD SRT6442W00D01GE008B00IH	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE008P02I0	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4		USB 2.0	CAN GPIO I2C PCIe SD SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC SD	1.18 in	1.85 in	3	1000Mbps 100Mbps 10Mbps	1 GHz	2	RS-232 RS-422 RS-485	1 count
SolidRun LTD SRT6442W00D01GE008V10I0	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE000B00IH	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE032B00IE	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE008P00IH	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE008B00IE	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE000V10I0	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE016B00IH	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz
SolidRun LTD SRT6442W00D01GE000B00IE	-40 °C	85 °C	No	1 GB	2	1 2 4	1	4	1 count	USB 3.0	CAN I2C PCIe PWM SPI UART	ARM Cortex-A53 Cortex-M4 Cortex-R5F	eMMC QSPI SD	1.18 in	1.85 in	2	1000Mbps 100Mbps 10Mbps	1.1 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SRT6442W00D01GE008P02I0 | Datasheet
