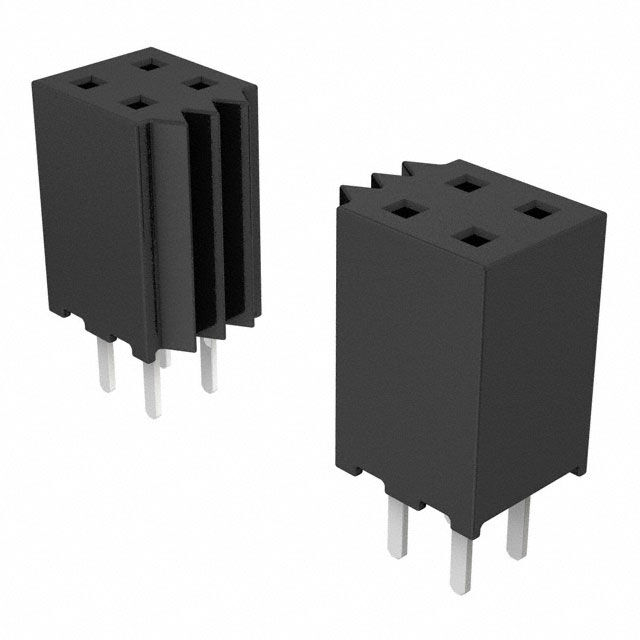

SQW-105-01-F-D-001

Active

Samtec Inc.

CONN RCPT 10POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

SQW-105-01-F-D-001

Active

Samtec Inc.

CONN RCPT 10POS 0.079 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQW-105-01-F-D-001

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

SQW-110 Series

Headers & Wire Housings Cost Effective Rugged PCB Sockets, 2.00mm pitch

...

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Type	Insulation Material	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Finish - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Shape	Mounting Type	Number of Positions Loaded	Number of Rows	Termination	Style	Current Rating (Amps)	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions Loaded
Samtec Inc. SQW-108-01-L-D-VS-A-K-TR	Black	10 çin	0.25 çm	Board Guide Pick and Place	Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	16	Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. SQW-140-01-H-D-VS-LC	Black	30 Áin	0.76 Ám		Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm		Gold	Gold	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C	3 µin	0.076 µm	80
Samtec Inc. SQW-108-01-F-T	Black	3 µin	0.076 µm		Forked	Liquid Crystal Polymer (LCP)				Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Through Hole	All	3	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			24	0.09 "	2.29 mm	6.35 mm	0.25 in
Samtec Inc. SQW-106-01-F-D-VS-A-P-TR	Black	3 µin	0.076 µm	Board Guide Pick and Place	Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm		Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			12
Samtec Inc. SQW-109-01-L-D-VS-P	Black	10 çin	0.25 çm	Pick and Place	Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm		Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			18
Samtec Inc. SQW-105-01-FM-D-VS	Black	3 µin	0.076 µm		Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm		Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			10
Samtec Inc. SQW-105-01-F-D-001	Black	3 µin	0.076 µm		Forked	Liquid Crystal Polymer (LCP)				Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Through Hole		2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			10	0.09 "	2.29 mm	6.35 mm	0.25 in	9
Samtec Inc. SQW-108-01-L-D-VS-LC-P-TR	Black	10 çin	0.25 çm	Board Lock Pick and Place	Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm	16	Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. SQW-120-01-F-D-VS-K-TR	Black	3 µin	0.076 µm	Pick and Place	Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm		Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount	All	2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			40
Samtec Inc. SQW-105-01-L-D-VS-A-009	Black	10 çin	0.25 çm	Board Guide	Forked	Liquid Crystal Polymer (LCP)	0.3 in	7.62 mm		Gold	Tin	0.079 in	2 mm	UL94 V-0	Square	Surface Mount		2	Solder	Board to Board Cable	3.8 A	Receptacle	0.079 in	2 mm	Push-Pull	Phosphor Bronze	-55 °C	125 °C			10					9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	54	$ 1.87

Description

General part information

SQW-110 Series

Headers & Wire Housings Cost Effective Rugged PCB Sockets, 2.00mm pitch

Documents

Technical documentation and resources

No documents available
