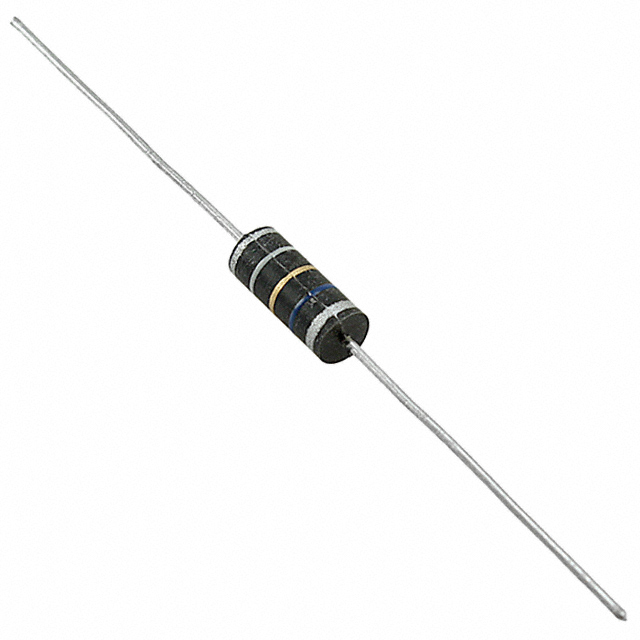

9310-32

Obsolete

Bourns Inc.

FIXED IND 6.8UH 600MA 500MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9310-32

Obsolete

Bourns Inc.

FIXED IND 6.8UH 600MA 500MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9310-32

Current Rating (Amps)	600 mA
DC Resistance (DCR) [Max]	500 mOhm
Frequency - Self Resonant	55 MHz
Inductance	6.8 µH
Inductance Frequency - Test	7.9 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Q @ Freq	7.9 MHz, 50
Shielding	Unshielded
Size / Dimension [diameter]	0.156 in
Size / Dimension [diameter]	3.96 mm
Size / Dimension [x]	0.375 in
Size / Dimension [x]	9.53 mm
Tolerance	10 %
Type	Wirewound, Drum Core

9310 Series

Part	Inductance	Current Rating (Amps)	DC Resistance (DCR)	Package / Case	Material - Core	Mounting Type	Inductance Frequency - Test	Tolerance	Shielding	Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	DC Resistance (DCR) [Max]	Q @ Freq
Bourns Inc. 9310-18	1.8 µH	525 mA	650 mOhm	Axial	Ferrite	Through Hole	7.9 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	150 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm
Bourns Inc. 9310-04-RC	330 nH	1.4 A		Axial	Ferrite	Through Hole	25 MHz	20 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	360 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm	90 mOhm	25 MHz 45
Bourns Inc. 9310-32	6.8 µH	600 mA		Axial	Ferrite	Through Hole	7.9 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	55 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm	500 mOhm	7.9 MHz 50
Bourns Inc. 9310-10	820 nH	900 mA	220 mOhm	Axial	Ferrite	Through Hole	25 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	220 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm		25 MHz 50
Bourns Inc. 9310-10-RC	820 nH	900 mA	220 mOhm	Axial	Ferrite	Through Hole	25 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	220 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm		25 MHz 50
Bourns Inc. 9310-16	1.5 µH	600 mA		Axial	Ferrite	Through Hole	7.9 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	160 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm	500 mOhm
Bourns Inc. 9310-40-RC	15 µH	370 mA		Axial	Ferrite	Through Hole	2.5 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	40 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm	1.4 Ohm	2.5 MHz 65
Bourns Inc. 9310-30-RC	5.6 µH	750 mA		Axial	Ferrite	Through Hole	7.9 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	60 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm		7.9 MHz 45
Bourns Inc. 9310-22	2.7 µH	385 mA		Axial	Ferrite	Through Hole	7.9 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	120 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm	1.2 Ohm
Bourns Inc. 9310-36	10 µH	445 mA		Axial	Ferrite	Through Hole	7.9 MHz	10 %	Unshielded	Drum Core Wirewound	105 ░C	-55 °C	45 MHz	0.156 in	0.375 in	9.53 mm	3.96 mm		7.9 MHz 55

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

9310 Series

6.8 µH Unshielded Drum Core, Wirewound Inductor 600 mA 500mOhm Max Axial
