ActiveTE Connectivity AMP Connectors
T1240105140-000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1240105140-000
ActiveTE Connectivity AMP Connectors
T1240105140-000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1240105140-000 | T124 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | - | Gray |
| Housing Finish | - | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast, Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H10B | H24B, H16B, H10B |
| Size | - | 16 B |
| Size / Dimension [x] | 2.874 in | 2.874 - 4.724 " |
| Size / Dimension [x] | 73 mm | 73 - 120 mm |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [z] | 2.835 in | 2.835 - 3.622 in |
| Size / Dimension [z] | 72 mm | 72 - 92 mm |
| Style | Top Entry | Dual, Top Entry, Side and Top Entry |
| Thread Size | - | M32, M50, PG29, M20, M25, PG16, PG21, M40, M36 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.14 | |
| 10 | $ 6.46 | |||
| 25 | $ 6.29 | |||
| 50 | $ 6.05 | |||
| 100 | $ 6.02 | |||
T124 Series
H24B-TGH-2M32
| Part | Connector Type | Size | Housing Finish | Lock Location | Housing Color | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Style | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Ingress Protection | Housing Material | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1240240232-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M32 | 125 °C | -40 °C | Dual, Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1246240150-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M50 | 125 °C | -40 °C | Top Entry | 120 mm | 4.724 " | 43 mm | 92 mm | 1.693 in | 3.622 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240160129-000 | Hood | H16B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG29 | 125 °C | -40 °C | Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240105140-000 | Hood | H10B | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | ||||
TE Connectivity AMP Connectors T1240243220-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M20, M32 | 125 °C | -40 °C | Dual, Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240163225-000 | Hood | H16B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25, M32 | 125 °C | -40 °C | Dual, Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240105116-000 | Hood | H10B | Locking Clip (2) on Base Bottom | PG16 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |||
TE Connectivity AMP Connectors T1240160216-000 | Hood | H16B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG16 | 125 °C | -40 °C | Dual, Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240105121-000 | Hood | H10B | Locking Clip (2) on Base Bottom | PG21 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |||
TE Connectivity AMP Connectors T1240105129-000 | Hood | H10B | Locking Clip (2) on Base Bottom | PG29 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |||
TE Connectivity AMP Connectors T1240100116-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG16 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240240225-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25 | 125 °C | -40 °C | Dual, Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240240129-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG29 | 125 °C | -40 °C | Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240100140-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | ||
TE Connectivity AMP Connectors T1248160132-000 | Hood | H16B | M32 | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum, Die Cast | |||||||
TE Connectivity AMP Connectors T1240240121-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG21 | 125 °C | -40 °C | Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240160225-000 | Hood | H16B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25 | 125 °C | -40 °C | Dual, Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240160140-000 | Hood | H16B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | 125 °C | -40 °C | Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | ||
TE Connectivity AMP Connectors T1240100125-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240105125-000 | Hood | H10B | Locking Clip (2) on Base Bottom | M25 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |||
TE Connectivity AMP Connectors T1240240125-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25 | 125 °C | -40 °C | Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240100120-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M20 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240160132-001 | Hood | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M32 | 125 °C | -40 °C | Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | 16 B | |
TE Connectivity AMP Connectors T1240242532-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25, M32 | 125 °C | -40 °C | Dual, Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240105132-000 | Hood | H10B | Locking Clip (2) on Base Bottom | M32 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |||
TE Connectivity AMP Connectors T1240164025-000 | Hood | H16B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M25, M40 | 125 °C | -40 °C | Side and Top Entry | 93.5 mm | 3.681 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240100121-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG21 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240100132-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M32 | 125 °C | -40 °C | Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240100220-000 | Hood | H10B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M20 | 125 °C | -40 °C | Dual, Top Entry | 73 mm | 2.874 in | 43 mm | 72 mm | 1.693 in | 2.835 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240240136-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | M36 | 125 °C | -40 °C | Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | |
TE Connectivity AMP Connectors T1240242129-000 | Hood | H24B | Powder Coated | Locking Clip (2) on Base Bottom | Gray | PG21, PG29 | 125 °C | -40 °C | Side and Top Entry | 120 mm | 4.724 " | 43 mm | 76 mm | 1.693 in | 2.992 in | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast |
Description
General part information
T124 Series

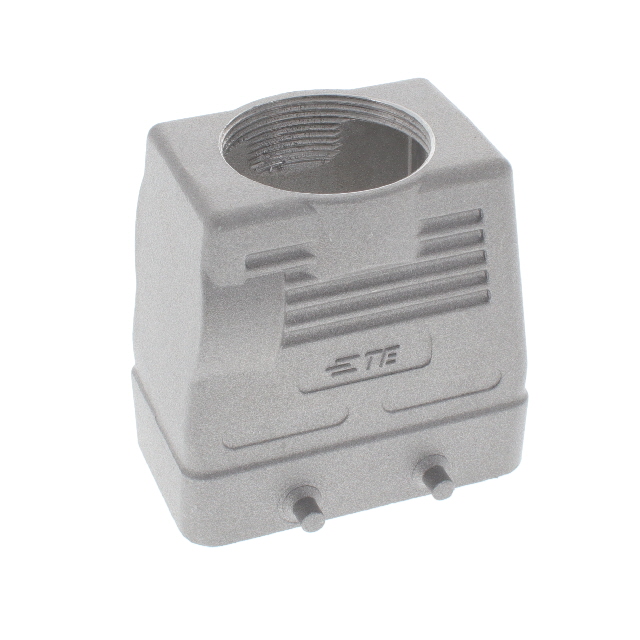

Hood Connector Top Entry M40 H10B IP65 - Dust Tight, Water Resistant
