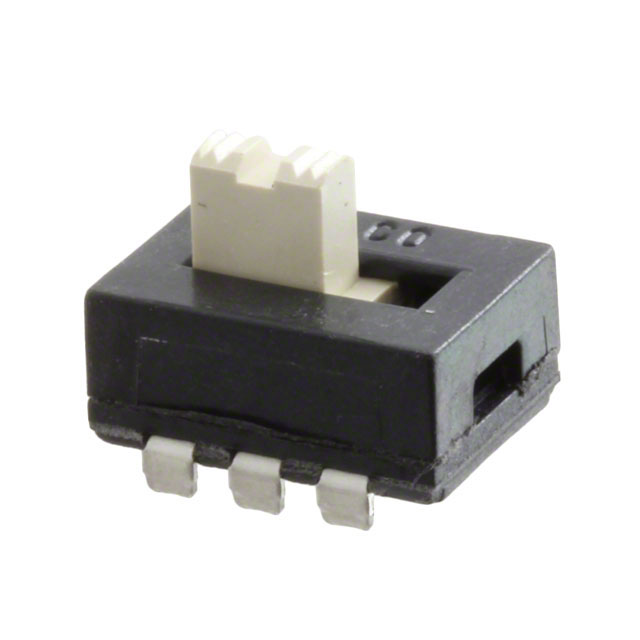

1-1825011-9

Obsolete

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DPDT 300MA 115V

Search across all available documentation for this part.

Obsolete

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DPDT 300MA 115V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DPDT 300MA 115V

Part	Voltage Rating - AC	Current Rating (Amps)	Actuator Length	Termination Style	Electrical Life	Mounting Type	Actuator Material	Switch Function	Actuator Type	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Contact Material	Operating Force	Switch Travel	Contact Timing	Contact Finish
TE Connectivity ALCOSWITCH Switches 1-1825011-9	115 V	300 mA	Flush	J Lead	15000 Cycles	Surface Mount, Right Angle	Nylon 4/6, Polyamide (PA46)	On-On	Screwdriver Slot	15000 Cycles	-40 °C	80 C	DPDT	Copper Alloy	950 gf	2.79 mm	Shorting	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DPDT Surface Mount, Right Angle

Technical documentation and resources

No documents available
