10118650-405006LF

Active

Amphenol ICC (FCI)

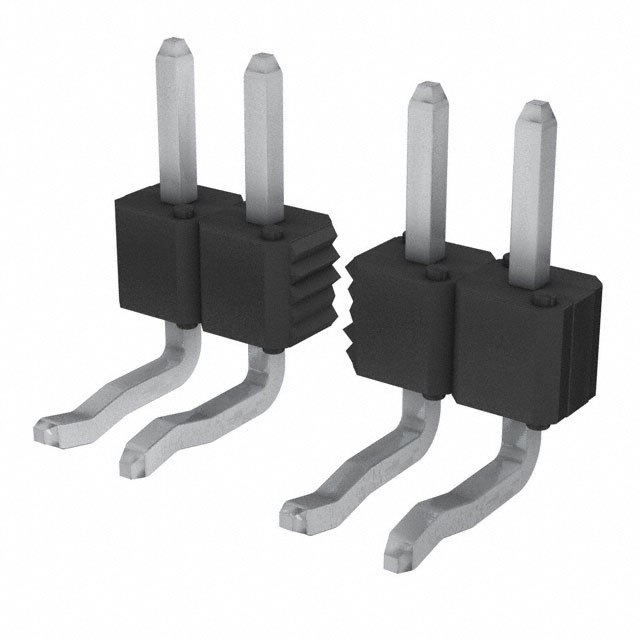

CONN HEADER R/A 5POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER R/A 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10118650-405006LF

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Kinked Pin, Solder

Part	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Material	Number of Positions Loaded	Insulation Material	Connector Type	Fastening Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Type	Number of Positions
Amphenol ICC (FCI) 10118650-405006LF	3 A	0.1 in	2.54 mm	1	0.15 in	3.81 mm	Square	Copper Alloy	All	Thermoplastic	Breakaway Header	Push-Pull	Unshrouded	0.15 in	3.81 mm	Kinked Pin Solder	Through Hole Right Angle	0.095 in	2.41 mm	Tin	2.54 çm	100 çin	Black	Male Pin
Amphenol ICC (FCI) 10118650-407008LF	3 A	0.1 in	2.54 mm	1	0.15 in	3.81 mm	Square	Copper Alloy	All	Thermoplastic	Breakaway Header	Push-Pull	Unshrouded	0.15 in	3.81 mm	Kinked Pin Solder	Through Hole Right Angle	0.095 in	2.41 mm	Tin	2.54 çm	100 çin	Black	Male Pin	7
Amphenol ICC (FCI) 10118650-403005LF	3 A	0.1 in	2.54 mm	1	0.15 in	3.81 mm	Square	Copper Alloy	All	Thermoplastic	Breakaway Header	Push-Pull	Unshrouded	0.15 in	3.81 mm	Kinked Pin Solder	Through Hole Right Angle	0.095 in	2.41 mm	Tin	2.54 çm	100 çin	Black	Male Pin
Amphenol ICC (FCI) 10118650-406001LF	3 A	0.1 in	2.54 mm	1	0.15 in	3.81 mm	Square	Copper Alloy	All	Thermoplastic	Breakaway Header	Push-Pull	Unshrouded	0.15 in	3.81 mm	Kinked Pin Solder	Through Hole Right Angle	0.095 in	2.41 mm	Tin	2.54 çm	100 çin	Black	Male Pin	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	16000	$ 0.11

General part information

Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
