LCM-S04004DSR

Active

Lumex Opto/Components Inc.

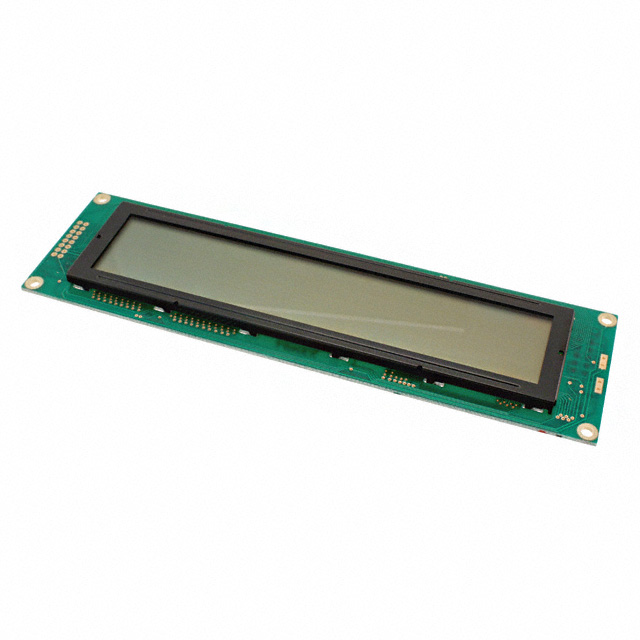

LCD MOD 160DIG 40 X 4 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 160DIG 40 X 4 REFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD 160DIG 40X4 TRAN YLW/GRN

Part	Display Mode	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [x]	Display Type	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Background Color	Interface	Display Format [y]	Display Format [x]	Character Size [y]	Character Size [z]	Number of Characters	Character Format [y]	Character Format [x]	Backlight
Lumex Opto/Components Inc. LCM-S04004DSF	Transflective	29.5 mm	149 mm	0.55 mm	0.5 mm	STN - Super-Twisted Nematic	54 mm	14.5 mm	190 mm	Green	Parallel	4	40	2.78 mm	4.89 mm	160	8 Dots	5 Dots
Lumex Opto/Components Inc. LCM-S04004DSR	Reflective	29.5 mm	149 mm	0.55 mm	0.5 mm	STN - Super-Twisted Nematic	54 mm	10 mm	190 mm	Green	Parallel	4	40	2.78 mm	4.89 mm	160	8 Dots	5 Dots	Without Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 190.00mm x 54.00mm x 10.00mm
