737-052-525-201

Active

EDAC Inc.

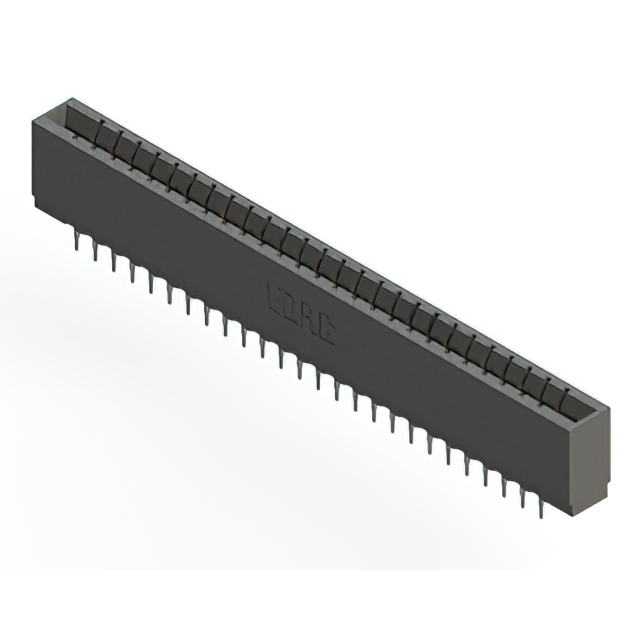

CONN EDGE DUAL FMALE 52POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

737-052-525-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 52POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-052-525-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-052 Series

Part	Number of Rows	Number of Positions	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Color	Termination	Termination Rows	Mounting Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Read Out	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
EDAC Inc. 737-052-522-201	2	52	Copper Alloy	Gold	26	Black	Press-Fit	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-525-201	2	52	Copper Alloy	Gold	26	Black	Press-Fit	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-541-206	2	52	Copper Alloy	Gold	26	Black	Press-Fit Wire Wrap	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-541-201	2	52	Copper Alloy	Gold	26	Black	Press-Fit Wire Wrap	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-520-206	2	52	Copper Alloy	Gold	26	Black	Press-Fit	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-560-201	2	52	Copper Alloy	Gold	26	Black	Press-Fit	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever Make Before Break	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-522-206	2	52	Copper Alloy	Gold	26	Black	Press-Fit	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm
EDAC Inc. 737-052-525-206	2	52	Copper Alloy	Gold	26	Black	Press-Fit	2	Through Hole	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Non Specified - Dual Edge	-40 °C	105 ░C	Female	Dual	0.76 Ám	30 Áin	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.11

Description

General part information

737-052 Series

52 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
