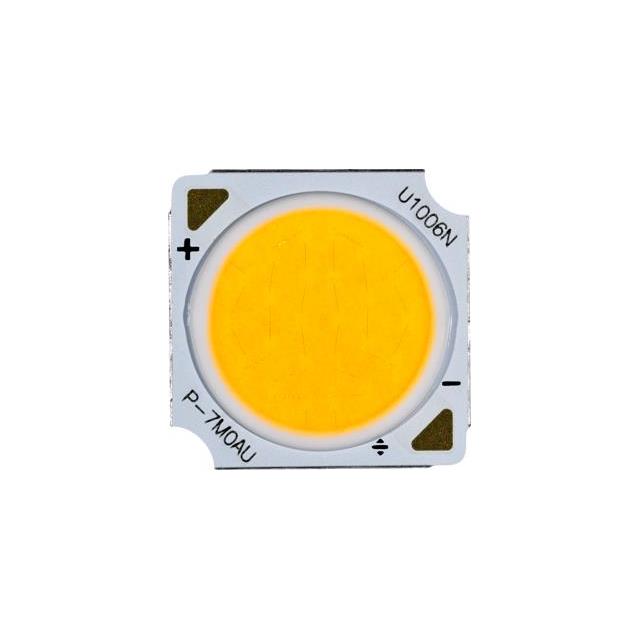

CMU1006-R160-00PN0Z0A30H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU1006-R160-00PN0Z0A30H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1006-R160-00PN0Z0A30H

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	480 mA
Current - Test	180 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.8 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1006 Series

Part	CRI (Color Rendering Index)	Mounting Type	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Flux @ 85°C, Current - Test	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Lens Type	Height [z]	Temperature - Test	Configuration	Light Emitting Surface (LES) [diameter]	Type
Cree LED CMU1006-0000-000N0B0A65E	70	Surface Mount	Cool White	180 mA	33.7 V	2-SMD No Lead	1124 lm	115 °	13.5 mm	0.531 in	0.531 in	13.5 mm	6500 K	480 mA	0.067 in	1.7 mm	185 lm/W
Cree LED CMU1006-R160-000N0Z0A35H	95		Warm White	180 mA	33.7 V			115 °					3500 K	480 mA			131 lm/W	793 lm	Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)
Cree LED CMU1006-R160-00PN0Z0A30H	95		Warm White	180 mA	33.7 V			115 °						480 mA					Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)
Cree LED CMU1006-0000-000N0H0A27H	80	Surface Mount	Warm White	180 mA	33.7 V	2-SMD No Lead	934 lm	115 °	13.5 mm	0.531 in	0.531 in	13.5 mm	2700 K	480 mA	0.067 in	1.7 mm	154 lm/W
Cree LED CMU1006-0000-000N0Z0A35H	95		Warm White	180 mA	33.7 V			115 °					3500 K	480 mA			131 lm/W	714 lm	Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)
Cree LED CMU1006-0000-000N0H0A40H	80	Surface Mount	Neutral White	180 mA	33.7 V	2-SMD No Lead	1000 lm	115 °	13.5 mm	0.531 in	0.531 in	13.5 mm	4000 K	480 mA	0.067 in	1.7 mm
Cree LED CMU1006-R160-000N0H0A30H	80		Warm White	180 mA	33.7 V			115 °					3000 K	480 mA				1010 lm	Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)
Cree LED CMU1006-R160-000N0U0A40G	90		Neutral White	180 mA	33.7 V			115 °					4000 K	480 mA			148 lm/W		Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)
Cree LED CMU1006-R160-000N0B0A40E	70		Neutral White	180 mA	33.7 V			115 °					4000 K	480 mA			186 lm/W	1129 lm	Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)
Cree LED CMU1006-R160-000N0U0A35G	90		Warm White	180 mA	33.7 V			115 °					3500 K	480 mA			147 lm/W	892 lm	Flat	1.5 mm	85 °C	Square	9.8 mm	Chip On Board (COB)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	160	$ 3.52

Description

General part information

CMU1006 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1006 White, Warm Square
