842-078-555-204
ActiveEDAC Inc.
STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-078-555-204
ActiveEDAC Inc.
STANDARD CARD EDGE CONNECTORS HIGH TEMP CARD EDGE CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-078-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-078 Series
| Part | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Termination Rows | Gender | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Number of Positions | Contact Material | Contact Type | Color | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Pitch [x] | Pitch [x] | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | |
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Board Edge Straddle Mount | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | Card Extender |
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | |
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | |
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Board Edge Straddle Mount | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | Card Extender |
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | |
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | |
EDAC Inc. | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | |||
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole Right Angle | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual | ||||
EDAC Inc. | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Diallyl Phthalate (DAP) | 2 | Female | Gold | 10 Áin | 0.25 Ám | 39 | Non Specified - Dual Edge | 78 | Copper Alloy | Cantilever | Green | Through Hole | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 102.06 | |
Description
General part information
842-078 Series

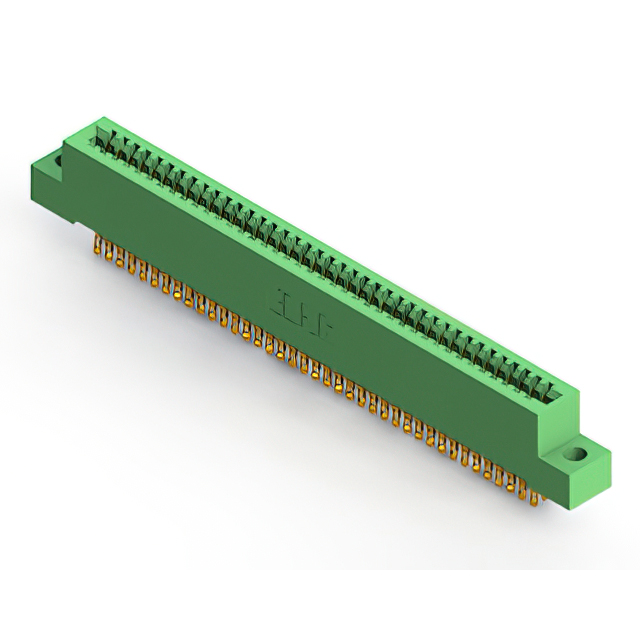

78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
