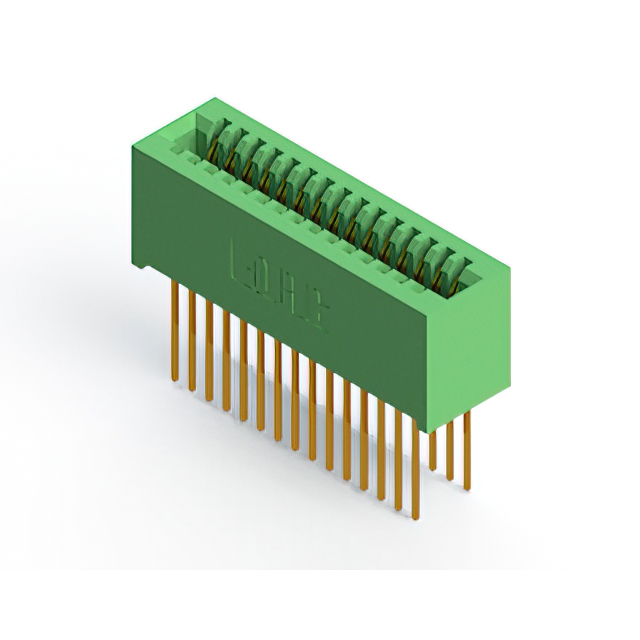

325-030-540-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 30POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

325-030-540-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 30POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-030-540-201

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

325-030 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Number of Positions/Bay/Row [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows	Card Thickness	Card Thickness	Read Out	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Card Type	Contact Finish	Number of Positions	Termination Rows	Material - Insulation
EDAC Inc. 325-030-520-109	2.54 mm	0.1 in	Through Hole	Cantilever	30	Copper Alloy	10 Áin	0.25 Ám	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	1	3.18 mm	0.125 in	Single	Green	Solder	125 °C	-65 ░C	Female	Non Specified - Single Edge	Gold	30	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-540-108	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		1	3.18 mm	0.125 in	Single	Green	Wire Wrap	125 °C	-65 ░C	Female	Non Specified - Single Edge	Gold	30	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-540-201	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám				2	3.18 mm	0.125 in	Dual	Green	Wire Wrap	125 °C	-65 ░C	Female	Non Specified - Dual Edge	Gold	30	2	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-500-208	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		2	3.18 mm	0.125 in	Dual	Green	Solder Eyelet(s)	125 °C	-65 ░C	Female	Non Specified - Dual Edge	Gold	30	2	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-540-208	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		2	3.18 mm	0.125 in	Dual	Green	Wire Wrap	125 °C	-65 ░C	Female	Non Specified - Dual Edge	Gold	30	2	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-500-209	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	2	3.18 mm	0.125 in	Dual	Green	Solder Eyelet(s)	125 °C	-65 ░C	Female	Non Specified - Dual Edge	Gold	30	2	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-520-201	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám				2	3.18 mm	0.125 in	Dual	Green	Solder	125 °C	-65 ░C	Female	Non Specified - Dual Edge	Gold	30	2	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-540-109	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	1	3.18 mm	0.125 in	Single	Green	Wire Wrap	125 °C	-65 ░C	Female	Non Specified - Single Edge	Gold	30	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-520-101	2.54 mm	0.1 in	Through Hole	Cantilever	30	Copper Alloy	10 Áin	0.25 Ám				1	3.18 mm	0.125 in	Single	Green	Solder	125 °C	-65 ░C	Female	Non Specified - Single Edge	Gold	30	1	Diallyl Phthalate (DAP)
EDAC Inc. 325-030-500-207	2.54 mm	0.1 in	Through Hole	Cantilever	15	Copper Alloy	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		2	3.18 mm	0.125 in	Dual	Green	Solder Eyelet(s)	125 °C	-65 ░C	Female	Non Specified - Dual Edge	Gold	30	2	Diallyl Phthalate (DAP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.11

Description

General part information

325-030 Series

30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
