ZFSC-2-5-N+

Active

MINI-CIRCUITS

PWR SPLTR CMBD / N / ROHS

Search across all available documentation for this part.

Active

MINI-CIRCUITS

PWR SPLTR CMBD / N / ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

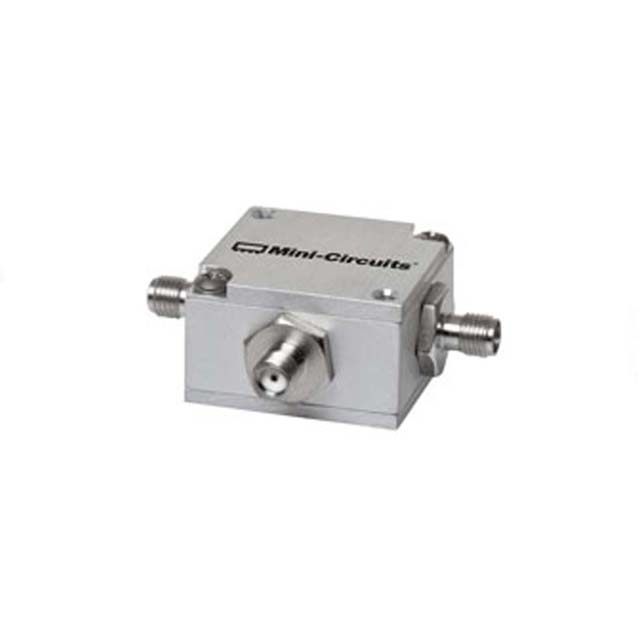

RF Power Divider 10 MHz ~ 1.5 GHz Isolation (Min) 20dB, 4° Imbalance (Max) N-Type In-Line Module

Technical documentation and resources

Specification	ZFSC-2-5-N+	ZFSC-2 Series

Frequency [Max]	1.5 GHz	1.5 - 500 MHz
Frequency [Min]	10 MHz	5 - 10 MHz
Insertion Loss	0.8 dB	0.6 - 0.8 dB
Package / Case	N-Type In-Line Module	Module, SMA Connectors, N-Type In-Line Module, BNC In-Line Module
Size / Dimension [x]	31.75 mm	31.75 mm
Size / Dimension [x]	1.25 "	1.25 "
Size / Dimension [y]	1.25 in	1.25 in
Size / Dimension [y]	31.75 mm	31.75 mm
Size / Dimension [z]	19.81 mm	19.81 mm
Size / Dimension [z]	0.78 in	0.78 in
Specifications [Max]	4 °	4 °
Specifications [Min]	20 dB	20 - 25 dB

Part	Insertion Loss	Specifications [Max]	Specifications [Min]	Package / Case	Frequency [Max]	Frequency [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
MINI-CIRCUITS ZFSC-2-1-S+	0.6 dB	4 °	25 dB	Module, SMA Connectors	500 MHz	5 MHz
MINI-CIRCUITS ZFSC-2-5-N+	0.8 dB	4 °	20 dB	N-Type In-Line Module	1.5 GHz	10 MHz	31.75 mm	1.25 in	19.81 mm	31.75 mm	0.78 in	1.25 "
MINI-CIRCUITS ZFSC-2-5+	0.8 dB	4 °	20 dB	BNC In-Line Module	1.5 GHz	10 MHz
