IXYK110N120A4

Active

IXYS

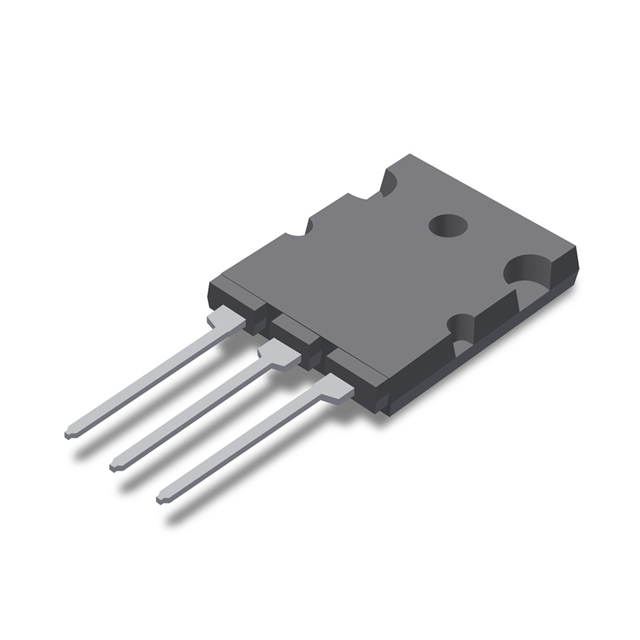

IGBT 1200V 110A GENX4 XPT TO-264

Search across all available documentation for this part.

Active

IXYS

IGBT 1200V 110A GENX4 XPT TO-264

Technical Specifications

Parameters and characteristics for this part

Specification	IXYK110N120A4

Current - Collector (Ic) (Max) [Max]	375 A
Current - Collector Pulsed (Icm)	900 A
Gate Charge	305 nC
IGBT Type	PT
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-264AA, TO-264-3
Power - Max [Max]	1360 W
Supplier Device Package	TO-264 (IXYK)
Switching Energy	2500 µJ, 8.4 mJ
Td (on/off) @ 25°C	550 ns
Td (on/off) @ 25°C	42 ns
Test Condition	1.5 Ohm, 50 A, 600 V, 15 V
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Switching Energy	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Gate Charge	Test Condition	Supplier Device Package	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Package / Case	IGBT Type
IXYS IXYK110N120A4	-55 °C	175 ░C	900 A	1.8 V	8.4 mJ 2500 µJ	550 ns	42 ns	305 nC	1.5 Ohm 15 V 50 A 600 V	TO-264 (IXYK)	1360 W	375 A	1200 V	Through Hole	TO-264-3 TO-264AA	PT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT PT 1200 V 375 A 1360 W Through Hole TO-264 (IXYK)
