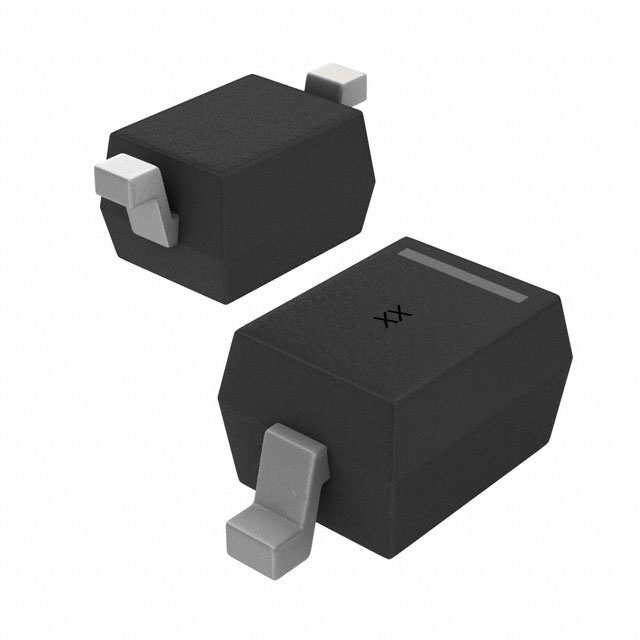

CDSOD323-T24SC

Active

Bourns Inc.

TVS DIODE 24VWM 46.2VC SOD323

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDSOD323-T24SC

Active

Bourns Inc.

TVS DIODE 24VWM 46.2VC SOD323

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDSOD323-T24SC

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	40 pF
Current - Peak Pulse (10/1000µs)	9 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOD-323, SC-76
Power - Peak Pulse	400 W
Power Line Protection	False
Supplier Device Package	SOD-323
Type	Zener
Voltage - Breakdown (Min) [Min]	26.7 V
Voltage - Clamping (Max) @ Ipp	46.2 V
Voltage - Reverse Standoff (Typ)	24 V

CDSOD323 Series

Part	Supplier Device Package	Package / Case	Voltage - Reverse Standoff (Typ)	Type	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Mounting Type	Unidirectional Channels [custom]	Power - Peak Pulse	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]
Bourns Inc. CDSOD323-T12S	SOD-323	SC-76 SOD-323	12 V	Zener	21 A	13.3 V	Surface Mount	1	500 W	150 pF	25.9 V	General Purpose	-55 °C	150 °C
Bourns Inc. CDSOD323-T24SC	SOD-323	SC-76 SOD-323	24 V	Zener	9 A	26.7 V	Surface Mount		400 W	40 pF	46.2 V	General Purpose	-55 °C	150 °C	1
Bourns Inc. CDSOD323-T03SC	SOD-323	SC-76 SOD-323	3.3 V	Zener	43 A	4 V	Surface Mount		400 W	200 pF	10.9 V	General Purpose	-55 °C	150 °C	1
Bourns Inc. CDSOD323-T18C	SOD-323	SC-76 SOD-323	18 V	Zener	8 A	20 V	Surface Mount		350 W	3 pF	45 V	General Purpose	-55 °C	150 °C	1
Bourns Inc. CDSOD323-T08S	SOD-323	SC-76 SOD-323	8 V	Zener	34 A	8.5 V	Surface Mount	1	500 W	250 pF	16.9 V	General Purpose	-55 °C	150 °C
Bourns Inc. CDSOD323-T05S	SOD-323	SC-76 SOD-323	5 V	Zener	42 A	6 V	Surface Mount	1	500 W	350 pF	13.5 V	General Purpose	-55 °C	150 °C
Bourns Inc. CDSOD323-T08SC	SOD-323	SC-76 SOD-323	8 V	Zener	17 A	8.5 V	Surface Mount		400 W	150 pF	18.5 V	General Purpose	-55 °C	150 °C	1
Bourns Inc. CDSOD323-T05SC	SOD-323	SC-76 SOD-323	5 V	Zener	28 A	6 V	Surface Mount		400 W	175 pF		General Purpose	-55 °C	150 °C	1	14.5 V
Bourns Inc. CDSOD323-T36SC	SOD-323	SC-76 SOD-323	36 V	Zener	5 A	40 V	Surface Mount		400 W	35 pF	75 V	General Purpose	-55 °C	150 °C	1
Bourns Inc. CDSOD323-T18L	SOD-323	SC-76 SOD-323	18 V	Zener	8 A	20 V	Surface Mount	1	350 W	1 pF	45 V	HDMI USB OTG	-55 °C	150 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.49
		10	$ 0.42
		100	$ 0.29
		500	$ 0.25
		1000	$ 0.23
	Digi-Reel®	1	$ 0.49
		10	$ 0.42
		100	$ 0.29
		500	$ 0.25
		1000	$ 0.23
	Tape & Reel (TR)	3000	$ 0.23

Description

General part information

CDSOD323 Series

46.2V (Typ) Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
