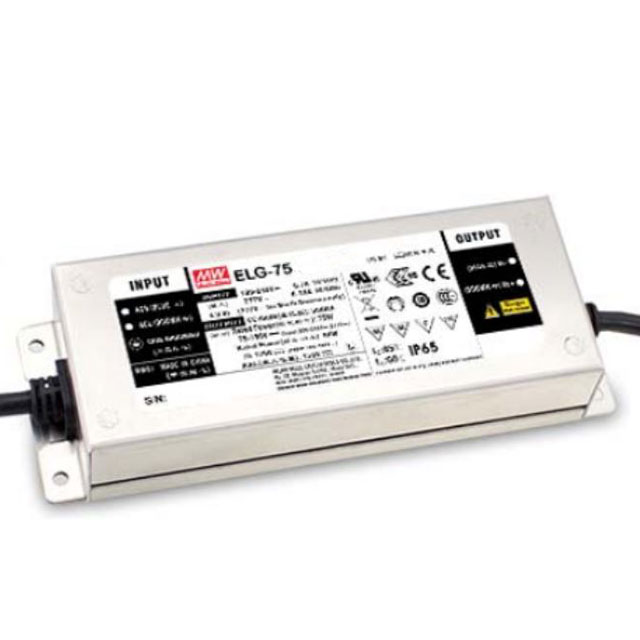

ELG-75-C500DA-3Y
ActiveMEAN WELL USA Inc.
LED CC AC/DC DRIVER 75W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELG-75-C500DA-3Y
ActiveMEAN WELL USA Inc.
LED CC AC/DC DRIVER 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELG-75-C500DA-3Y |
|---|---|
| Approval Agency | KC, ENEC, RCM, CE, CCC, CB, EAC, cURus |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 91 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 75 W |
| Ratings | IP67 |
| Size / Dimension [x] | 156 mm |
| Size / Dimension [x] | 6.14 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [z] | 35.5 mm |
| Size / Dimension [z] | 1.4 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 150 V |
| Voltage - Output [Min] | 75 V |
ELG-75 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Efficiency | Number of Outputs | Voltage - Output [Min] | Voltage - Output [Max] | Power (Watts) | Current - Output (Max) [Max] | Mounting Type | Features | Termination Style | Voltage - Input (Min) [Min] | Voltage - Isolation | Ratings | Topology | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Dimming | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current | 91 % | 1 | 75 V | 150 V | 75 W | 500 mA | Chassis Mount | OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP67 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC KC RCM | ||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current Voltage | 90 % | 1 | 21 V | 42 V | 76 W | 1.8 A | Chassis Mount | OCP OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP67 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC RCM | ||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current | 91 % | 1 | 75 V | 150 V | 75 W | 500 mA | Chassis Mount | OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP65 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC KC RCM | Analog PWM | |
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current | 90 % | 1 | 27 V | 54 V | 76 W | 1.4 A | Chassis Mount | OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP67 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus ENEC | Analog PWM | |
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current | 90 % | 1 | 75 W | 700 mA | Chassis Mount | OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP67 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC KC RCM | ||||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current Voltage | 90 % | 1 | 77 W | 1.6 A | Chassis Mount | OCP OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP65 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC KC RCM | 48 V | |||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current Voltage | 89 % | 1 | 76 W | 2.1 A | Chassis Mount | OCP OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP65 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC KC RCM | 36 V | |||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current Voltage | 90 % | 1 | 76 W | 1.8 A | Chassis Mount | OCP OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP65 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus EAC ENEC KC RCM | Analog PWM | 42 V | ||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current | 90 % | 1 | 27 V | 54 V | 76 W | 1.4 A | Chassis Mount | OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP65 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus ENEC | ||
MEAN WELL USA Inc. | 85 °C | -40 °C | Constant Current Voltage | 88 % | 1 | 76 W | 3.15 A | Chassis Mount | OCP OTP OVP SCP | Wire Leads | 100 VAC | 3750 V | IP67 | AC DC Converter | 305 VAC | 156 mm | 35.5 mm | 63 mm | 6.14 in | 1.4 " | 2.48 in | CB CCC CE cURus TUV | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 16 | $ 37.05 | |
Description
General part information
ELG-75 Series
500mA 75 ~ 150V Constant Current LED Driver AC DC Converter Topology 1 Output
