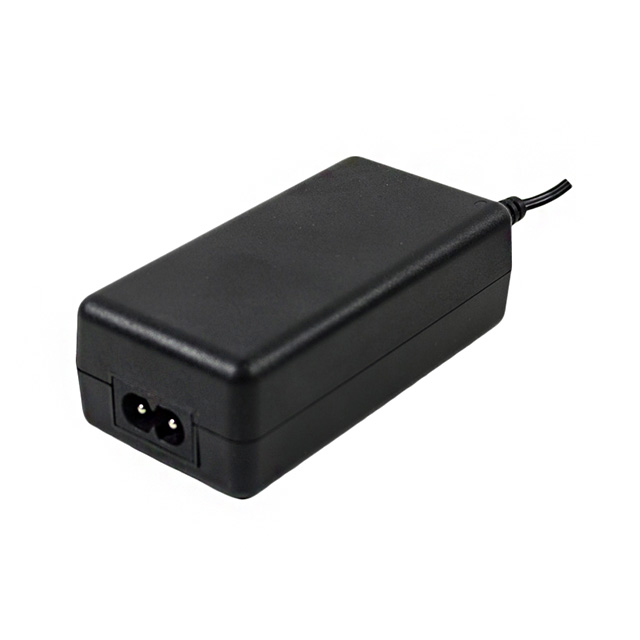

SDM36-5-UD-P5R

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 5V 25W

Deep-Dive with AI

Search across all available documentation for this part.

SDM36-5-UD-P5R

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 5V 25W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDM36-5-UD-P5R

Applications	ITE (Commercial), Medical
Approval Agency	FCC, EN, CSA, IEC, UL, PSE, CB Scheme
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug R/A
Output Connector [x]	2.1 mm
Output Connector [y]	5.5 mm
Output Connector [z]	9.5 mm
Polarization	Positive Center
Power (Watts)	25 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	55011 Class B, C22.2 No. 60601-1, 61000-3-3, 61000-3-2, 60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	210.01 g
Weight	0.463 lb

SDM36-U Series

Desktop AC Adapters 36W 15V 2.4A Med C14 2.5x5.5 RA EU cable

...

Part	Operating Temperature [Max]	Output Connector [z]	Output Connector [y]	Output Connector	Output Connector [x]	Efficiency	Standard Number	Polarization	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	No Load Power Consumption	Current - Output (Max) [Max]	Form	Weight	Weight	Region Utilized	Cord Length	Cord Length	Approval Agency	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Applications	Power (Watts)	Voltage - Output	Output Connector [diameter]
CUI Inc. SDM36-15-UDC-P5R	40 °C	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	100 mW	2.4 A	Desktop (Class II)	210.01 g	0.463 lb	North America	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	36 W	15 VDC
CUI Inc. SDM36-9-UDC-P5R	40 °C	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	100 mW	4 A	Desktop (Class II)	210.01 g	0.463 lb	North America	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	36 W	9 V
CUI Inc. SDM36-5-U2-P5	40 °C			Barrel Plug	9.5 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	100 mm	3.94 in	1.97 "	50 mm	100 mW	5 A	Desktop (Class I)	170.1 g	0.375 lb	Europe	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	25 W	5 V	2.1 mm 5.5 mm
CUI Inc. SDM36-5-UD-P5R	40 °C	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	100 mW	5 A	Desktop (Class II)	210.01 g	0.463 lb		1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	25 W	5 V
CUI Inc. SDM36-12-UCM-P6R	40 °C			Barrel Plug R/A	9.5 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	100 mm	3.94 in	1.97 "	50 mm	100 mW	3 A	Desktop (Class I)	170.1 g	0.375 lb	North America	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	36 W	12 V	2.5 mm 5.5 mm
CUI Inc. SDM36-24-UD-P5R	40 °C	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	100 mW	1.5 A	Desktop (Class II)	210.01 g	0.463 lb		1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C8	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	36 W	24 V
CUI Inc. SDM36-24-U2-P6	40 °C			Barrel Plug	9.5 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	100 mm	3.94 in	1.97 "	50 mm	100 mW	1.5 A	Desktop (Class I)	170.1 g	0.375 lb	Europe	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	36 W	24 V	2.5 mm 5.5 mm
CUI Inc. SDM36-5-U2-P6R	40 °C			Barrel Plug R/A	9.5 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	100 mm	3.94 in	1.97 "	50 mm	100 mW	5 A	Desktop (Class I)	170.1 g	0.375 lb	Europe	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	25 W	5 V	2.5 mm 5.5 mm
CUI Inc. SDM36-15-UC-P6R	40 °C			Barrel Plug R/A	9.5 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	100 mm	3.94 in	1.97 "	50 mm	100 mW	2.4 A	Desktop (Class I)	170.1 g	0.375 lb	North America	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	36 W	15 VDC	2.5 mm 5.5 mm
CUI Inc. SDM36-7.5-UCM-P6	40 °C			Barrel Plug	9.5 mm	Level VI	55011 Class B 60601-1 61000-3-2 61000-3-3 C22.2 No. 60601-1	Positive Center	33 mm	1.3 "	100 mm	3.94 in	1.97 "	50 mm	100 mW	4 A	Desktop (Class I)	170.1 g	0.375 lb	North America	1.5 m	59 in	CB Scheme CSA EN FCC IEC PSE UL	IEC 320-C14	90 VAC	264 VAC	Cord	ITE (Commercial) Medical	30 W	7.5 V	2.5 mm 5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1020	$ 17.60

Description

General part information

SDM36-U Series

Desktop AC Adapters 36W 15V 2.4A Med C14 2.5x5.5 RA EU cable
