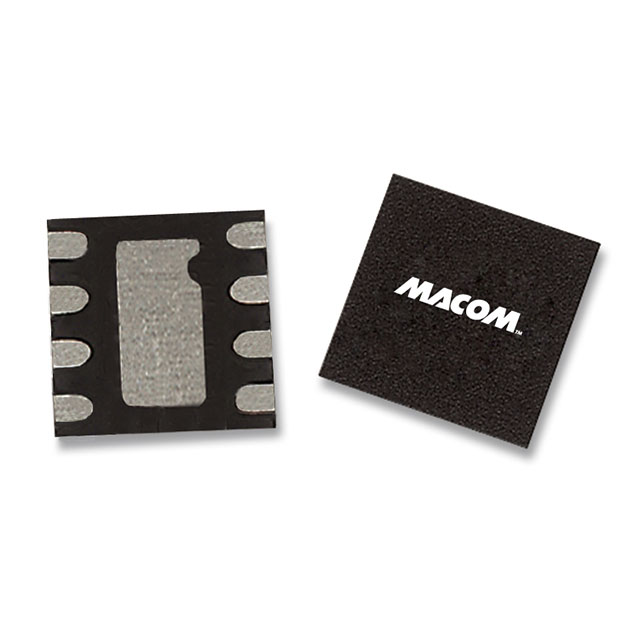

MAAL-011078-001SMB
ActiveMACOM Technology Solutions
IC RF AMP GPS 700MHZ-6GHZ 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAAL-011078-001SMB
ActiveMACOM Technology Solutions
IC RF AMP GPS 700MHZ-6GHZ 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAL-011078-001SMB |
|---|---|
| Current - Supply | 50 mA |
| Frequency [Max] | 6 GHz |
| Frequency [Min] | 700 MHz |
| Gain | 25 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 0.35 dB |
| P1dB | 17.5 dBm |
| Package / Case | 8-VFDFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 8-PDFN (2x2) |
| Test Frequency | 1.9 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4 | $ 413.44 | |
Description
General part information
MAAL-011078 Series
RF Amplifier IC General Purpose 700MHz ~ 6GHz 8-PDFN (2x2)
Documents
Technical documentation and resources
