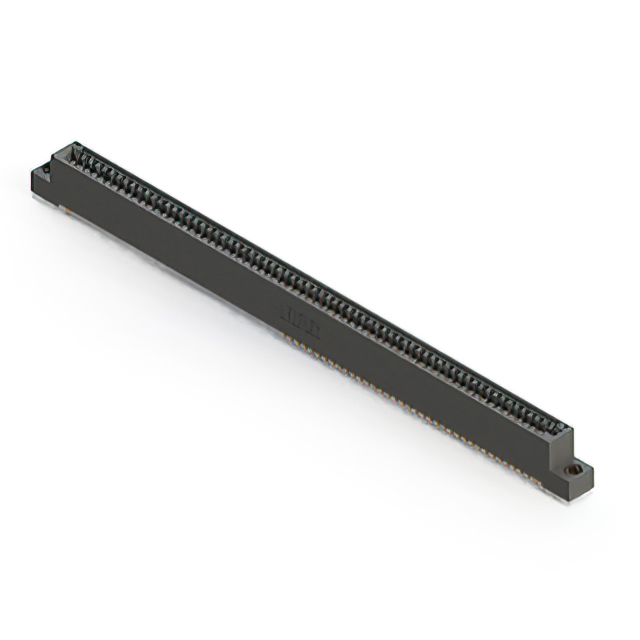

895-069-558-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 69POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-069-558-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 69POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-069-558-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 69 |
| Number of Positions/Bay/Row [custom] | 69 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-069 Series
...
| Part | Termination Rows | Read Out | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Gender | Color | Number of Positions | Contact Finish | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Number of Rows | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | 1 | 69 | Non Specified - Single Edge | ||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole Right Angle | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | 1 | 69 | Non Specified - Single Edge | ||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Wire Wrap | 1 | 69 | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Solder Eyelet(s) | 1 | 69 | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | 1 | 69 | Non Specified - Single Edge | ||||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Solder Eyelet(s) | 1 | 69 | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Solder | 1 | 69 | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole Right Angle | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Solder | 1 | 69 | Non Specified - Single Edge | ||||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Solder | 1 | 69 | Non Specified - Single Edge | ||||
EDAC Inc. | 1 | Single | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Black | 69 | Gold | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Solder | 1 | 69 | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-069 Series
69 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
