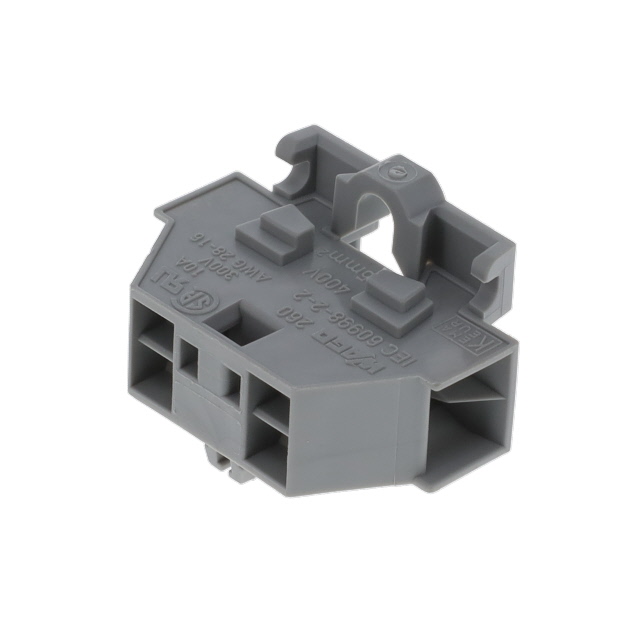

260-331

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², CLAMP, 18 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

260-331

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 16 AWG, 1.5 MM², CLAMP, 18 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	260-331

Current - IEC	18 A
Features	Flange
Height (Max) [Max]	0.984 in
Height (Max) [Max]	24.99 mm
Housing Color	Gray
Length [x]	0.669 in
Length [x]	17 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Direct Mount
Number of Levels	1
Number of Positions	4
Stripping Length [Max] [x]	9 mm
Stripping Length [Min] [x]	8 mm
Terminal - Width [y]	8 mm
Termination Style	Push In, Spring
Type	Middle
Voltage - IEC	400 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

260 Series

Part	Material Flammability Rating	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Material - Insulation	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Housing Color	Stripping Length [Min] [x]	Stripping Length [Max] [x]	Length [x]	Length [x]	Termination Style	Voltage - IEC	Features	Type	Current - IEC	Terminal - Width [y]	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Color	For Use With/Related Products
WAGO Corporation 260-331	UL94 V-0	1.5 mm²	0.08 mm²	1	Polyamide (PA66) Nylon 6/6	4	28 AWG	16 AWG	Gray	8 mm	9 mm	0.669 in	17 mm	Push In Spring	400 V	Flange	Middle	18 A	8 mm	Direct Mount	0.984 in	24.99 mm
WAGO Corporation 260-361																	End Plate						Gray	Terminal Blocks

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.99
		50	$ 1.25
		100	$ 1.22
		1000	$ 0.89
		5000	$ 0.78
		10000	$ 0.77
Newark	Each	25	$ 1.65
		100	$ 1.53
		250	$ 1.45
		500	$ 1.35

Description

General part information

260 Series

The 260-331 is a 4-position 1-level modular DIN rail Terminal Block with fixing flange, for screw or similar mounting types. 1.5mm² cross-section, clamp wire connection method, 28 to 16AWG wire size, side-entry wiring and grey colour.
