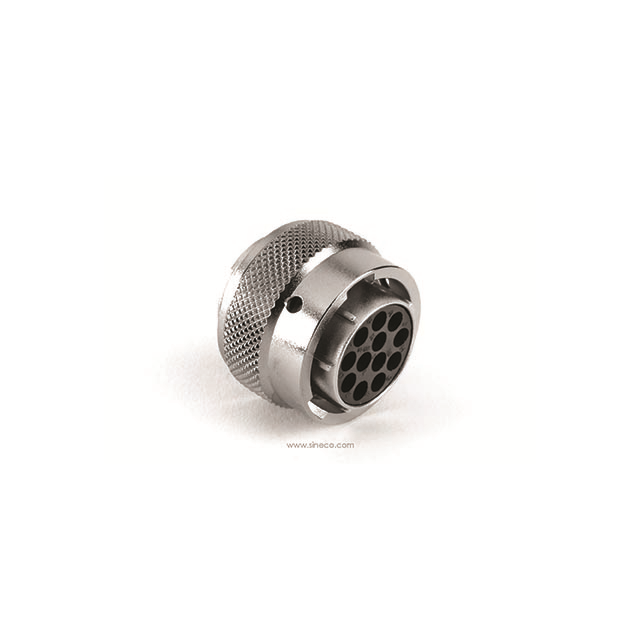

RT061412SNH03

Active

Amphenol Sine Systems Corp

PLUG, FEMALE WITH SILICONE SEAL,

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 ecomate RM, RSSM, RM Flyer +1

RT061412SNH03

Active

Amphenol Sine Systems Corp

PLUG, FEMALE WITH SILICONE SEAL,

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 ecomate RM, RSSM, RM Flyer +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT061412SNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	14-12
Shielding	Shielded
Type	For Female Sockets

RT061412 Series

Part	Type	Note	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Fastening Type	Shell Size - Insert	Contact Shape	Connector Type	Includes	Number of Positions	Contact Size	Ingress Protection	Shell Material	Shell Finish	Features	Orientation	Contact Type	Housing Color	Mounting Type	Material Flammability Rating	Contact Material	Voltage Rating	Primary Material	Applications	Termination	Backshell Material, Plating	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Contact Finish - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)
Amphenol Sine Systems Corp RT061412SNH03	For Female Sockets	Contacts Not Included	Shielded	125 °C	-40 °C	Thermoplastic	Bayonet Lock	14-12	Circular	Plug Housing	1 Connector 1 Gasket 1 O-Ring	12	16	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	Coupling Nut	N	Crimp	Silver	Free Hanging (In-Line)	UL94 V-0
Amphenol Sine Systems Corp RT061412PNHEC03R	For Male Pins	Contacts Not Included	Shielded	125 °C	-40 °C	Thermoplastic	Bayonet Lock	14-12	Circular	Plug Housing		12	16	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	Backshell Coupling Nut	N	Crimp	Silver	Free Hanging (In-Line)	UL94 V-0
Amphenol Sine Systems Corp RT061412PNH03SS-K			Shielded	105 ░C	-40 °C	Polyamide (PA66) Nylon 6/6	Bayonet Lock	14-12		Male Pins Plug		12		IP67 IP69K	Zinc Die Cast	Nickel	Backshell Coupling Nut	N			Free Hanging (In-Line)	UL94 V-0	Brass	250 VAC	Metal	Aerospace Automation Industrial Telecom Transportation	Crimp	Nickel Zinc Die Cast	Silver	0.256 in	6.5 mm	0.394 in	10 mm	Gold	Flash	13 A
Amphenol Sine Systems Corp RT061412SNHEC	For Female Sockets	Contacts Not Included	Shielded	105 ░C	-40 °C	Thermoplastic	Bayonet Lock	14-12	Circular	Plug Housing	1 Backshell 1 Connector 1 O-Ring 1 Seal	12	16	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	Backshell Coupling Nut	N	Crimp	Silver	Free Hanging (In-Line)	UL94 V-0
Amphenol Sine Systems Corp RT061412PNHECR
Amphenol Sine Systems Corp RT061412PNH03	For Male Pins	Contacts Not Included	Shielded	125 °C	-40 °C	Thermoplastic	Bayonet Lock	14-12	Circular	Plug Housing	1 Connector 1 Gasket 1 O-Ring	12	16	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	Coupling Nut	N	Crimp	Silver	Free Hanging (In-Line)	UL94 V-0
Amphenol Sine Systems Corp RT061412SNH-K				105 ░C	-40 °C		Bayonet Lock	14-12		Female Sockets Plug		12		IP67 - Dust Tight Waterproof	Zinc Die Cast	Nickel		N			Free Hanging (In-Line)			250 VAC	Metal		Crimp		Silver					Gold	Flash	13 A
Amphenol Sine Systems Corp RT061412SNHEC03R	For Female Sockets	Contacts Not Included	Shielded	125 °C	-40 °C	Thermoplastic	Bayonet Lock	14-12	Circular	Plug Housing		12	16	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	Backshell Coupling Nut	N	Crimp	Silver	Free Hanging (In-Line)	UL94 V-0
Amphenol Sine Systems Corp RT061412PNHEC	For Male Pins	Contacts Not Included	Shielded	105 ░C	-40 °C	Thermoplastic	Bayonet Lock	14-12	Circular	Plug Housing		12	16	IP67 - Dust Tight Waterproof	Zinc Alloy	Nickel	Backshell Coupling Nut	N	Crimp	Silver	Free Hanging (In-Line)	UL94 V-0
Amphenol Sine Systems Corp RT061412SNH03SS-K			Shielded	105 ░C	-40 °C	Polyamide (PA66) Nylon 6/6	Bayonet Lock	14-12		Female Sockets Plug		12		IP67 IP69K	Zinc Die Cast	Nickel	Backshell Coupling Nut	N			Free Hanging (In-Line)	UL94 V-0	Brass	250 VAC	Metal	Aerospace Automation Industrial Telecom Transportation	Crimp	Nickel Zinc Die Cast	Silver	0.256 in	6.5 mm	0.394 in	10 mm	Gold	Flash	13 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 16.91

Description

General part information

RT061412 Series

12 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet
