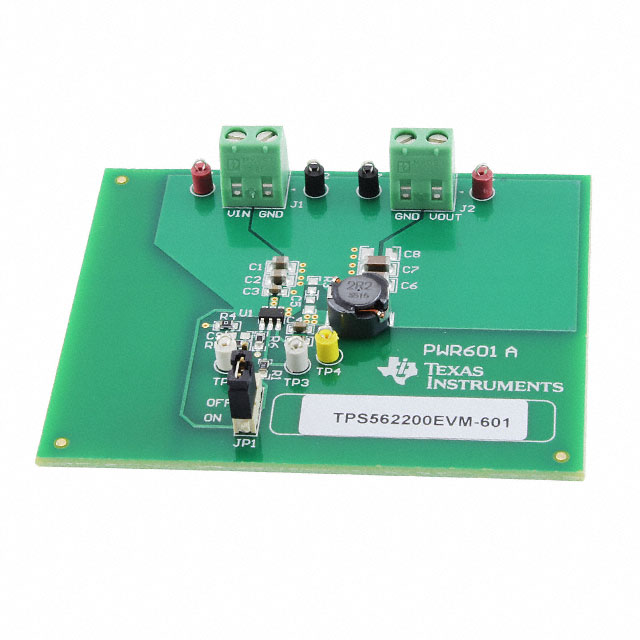

TPS562200EVM-601
ActiveTexas Instruments
EVAL BOARD BUCK REG TPS562200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS562200EVM-601
ActiveTexas Instruments
EVAL BOARD BUCK REG TPS562200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS562200EVM-601 | TPS562200 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 650 kHz | 650 kHz |
| Function | - | Step-Down |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | TSOT-23-6, SOT-23-6 Thin |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | SOT-23-THIN |
| Synchronous Rectifier | - | True |
| Topology | - | Buck |
| Utilized IC / Part | TPS562200 | TPS562200 |
| Voltage - Input (Max) | - | 17 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 17 V | 17 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output | 1.05 V | 1.05 V |
| Voltage - Output (Max) | - | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS562200 Series
EVAL BOARD BUCK REG TPS562200
| Part | Current - Output | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Frequency - Switching | Main Purpose | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Synchronous Rectifier | Voltage - Input (Max) [Max] | Topology | Voltage - Output (Max) [Max] | Output Type | Function | Package / Case | Output Configuration | Number of Outputs | Voltage - Input (Min) [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS562200EVM-601TPS562200 D-CAP2™, Eco-Mode™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | 2 A | Non-Isolated | 1 | Fully Populated | 1.05 V | TPS562200 | 4.5 V | 17 V | Board(s) | 650 kHz | DC/DC, Step Down | ||||||||||||||
Texas Instruments TPS562200DDCTThe TPS562200 and TPS563200 are simple, easy-to-use, 2-A and 3-A synchronous step-down (buck) converters in 6-pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2 control topology providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
TPS562200 and TPS563200 operate in Advanced Eco-mode, which maintains high efficiency during light load operation. The devices are available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and specified from –40°C to 85°C of ambient temperature.
The TPS562200 and TPS563200 are simple, easy-to-use, 2-A and 3-A synchronous step-down (buck) converters in 6-pin SOT-23 package.
The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current.
These switch mode power supply (SMPS) devices employ D-CAP2 control topology providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.
TPS562200 and TPS563200 operate in Advanced Eco-mode, which maintains high efficiency during light load operation. The devices are available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and specified from –40°C to 85°C of ambient temperature. | 2 A | 650 kHz | 85 °C | -40 °C | SOT-23-THIN | 17 V | Buck | 7 V | Adjustable | Step-Down | SOT-23-6 Thin, TSOT-23-6 | Positive | 1 | 4.5 V | Surface Mount |
Description
General part information
TPS562200 Series
TPS562200 D-CAP2™, Eco-Mode™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
