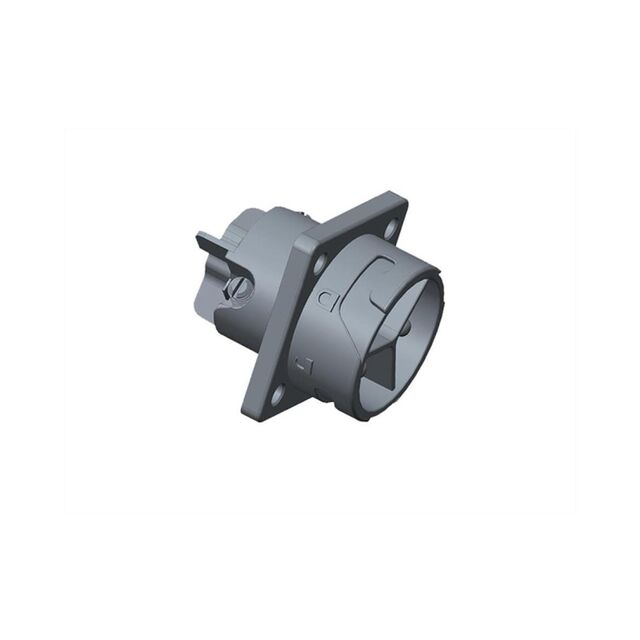

PWL-03PMMB-TS7001
ActiveAmphenol LTW
POWER 30A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PWL-03PMMB-TS7001
ActiveAmphenol LTW
POWER 30A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PWL-03PMMB-TS7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 30 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Ether (PPE) |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyphenylene Ether (PPE) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.51 | |
| 10 | $ 10.20 | |||
| 30 | $ 9.81 | |||
| 50 | $ 9.42 | |||
| 100 | $ 8.89 | |||
| 250 | $ 8.11 | |||
| 500 | $ 7.59 | |||
| 1000 | $ 6.96 | |||
Description
General part information
PWL-03PMMB Series
3 Position Circular Connector Receptacle, Male Pins Screw
